17.5kW Package Wall Mounted Precision Air Conditioner

This wall-mounted air conditioner adopts a packaged industrial structure with durable metal housing, designed for electrical rooms with higher heat loads. Powered by three-phase 3~380VAC, it supports continuous operation and efficient heat removal. The unit is delivered ready for installation, helping simplify commissioning and ensuring stable temperature control for critical electrical equipment.

Cooling Capacity:	17.5KW
Control board:	Microcontroller
Rated voltage:	3~ 380V±10%/50Hz
Communication :	RS485+SNMP
Color:	RAL 7035
Material:	SGCC
Availability:

Quantity:



Inquire Add to Basket

Model:
CS A 175 W A
Brand:
CHUNSHU COOLING
Code:
94200

Company Profile

The 17.5kW wall-mounted electrical room air conditioner is designed for electrical rooms with higher heat loads, including switchgear rooms, MCC rooms and power distribution rooms. Powered by 3~380VAC 50Hz/3~460VAC 60Hz, it provides strong and stable cooling performance to protect electrical equipment from overheating during continuous operation.

The packaged wall-mounted design supports fast installation and simplified commissioning. Built for industrial environments, the unit delivers reliable 24/7 cooling to maintain a stable indoor climate for critical power and control systems.

date center

Key Features

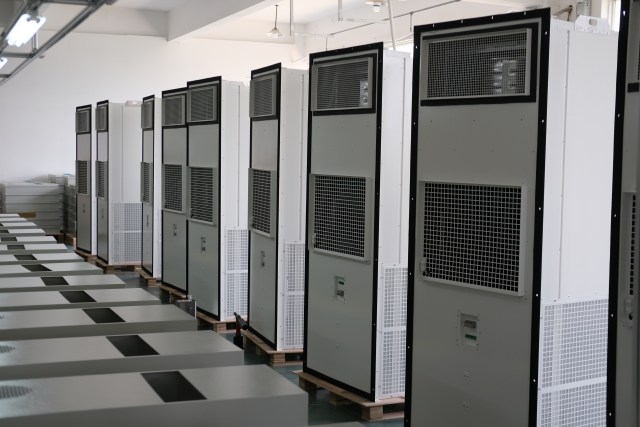

17.5KW Wall mounted Precision AC Unit (6)

√ World-class brand material selection, integrated variable containor air conditioner, with cooling, heating, dehumidification function.

Cooling capacity: 17.5kW
Power supply: 3~380VAC (three-phase)
Wall-mounted packaged industrial structure
Designed for continuous duty operation
Digital microprocessor temperature controller
Optional heating and dehumidification functions
Efficient cooling for high heat density electrical rooms
Durable construction for long service life

Key Components

√ Precision Microcontroller PDI intelligent board

MTBF>1000,000 hours

Adopt 180 degree vector control algorithm, high efficiency and smooth operation.

Adaptive torque algorithm ensures vibration-free startup every time.

Motor short circuit protection.

High voltage protection switch or external control input control.

Communication: Isolated SNMP card and RS485 communication

DSCF4981

DSCF4989

√ Top Brand BLDC R410A compressor

Low energy consumption: Adopting DC inverter technology, it can be intelligently controlled according to the actual load demand.

Low noise: BLDC inverter compressor is controlled by DC power supply, which reduces the current fluctuation.

High Stability: Adapt to work in harsh environments, such as high and low temperatures and other extreme conditions.

Long life: BLDC inverter compressor greatly reduces the wear and tear of mechanical parts due to the brushless motor technology, thus greatly extending the life of the compressor.

Low vibration: the use of DC power supply, so it can do a small, smooth operation, avoiding the traditional compressor's violent vibration.TOSHIBA BLDC Compressor

.

√ High-efficiency EC centrifugal fan

Energy efficient

Low noise and high reliability

High rotational speed, large air volume, reduce the heat accumulation of electronic equipment.

DSCF5152_副本

√ Outdoor air inlet, G2 preliminary filtration

Avoid outdoor dust entering the cabinet

Low resistance of filter material, high dust capacity.

Excellent material, long service life

√ Indoor air inlet, G4 enhanced filtration

Aluminum alloy + electrostatic filter cotton

Low initial resistance, large capacity, long life

Fast filtration speed, large dirt-holding capacity

Alloy material, not easy to deform

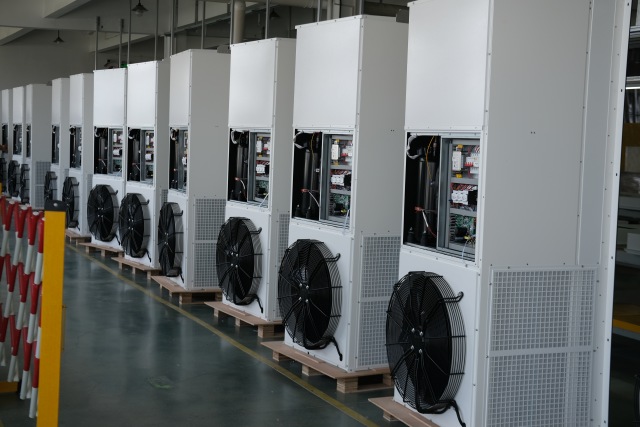

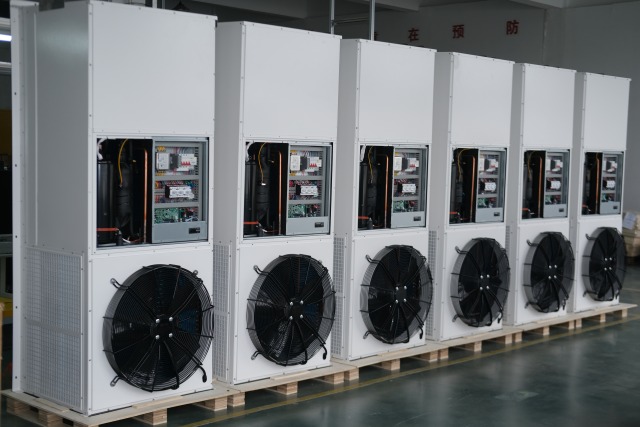

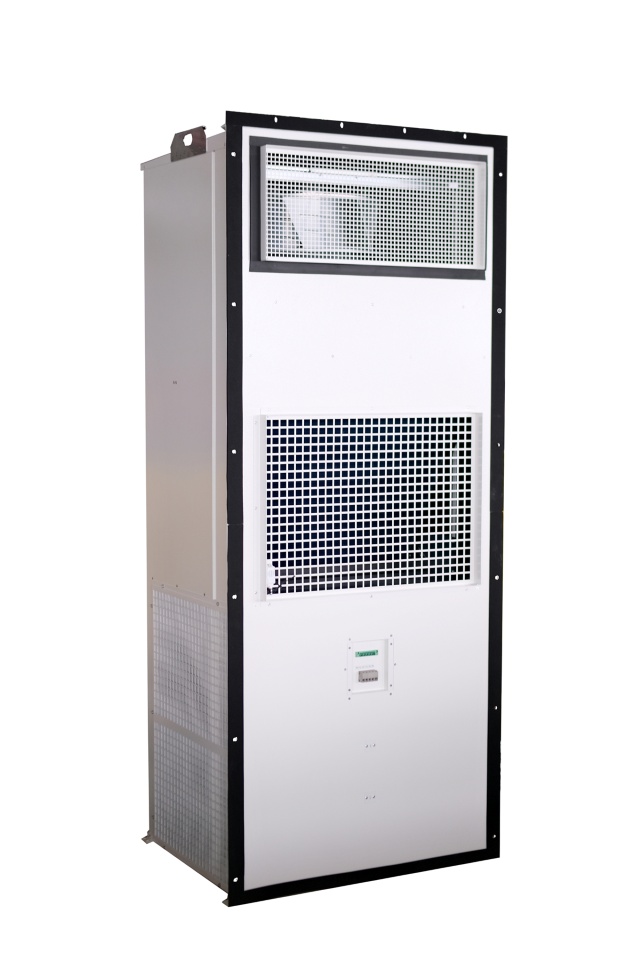

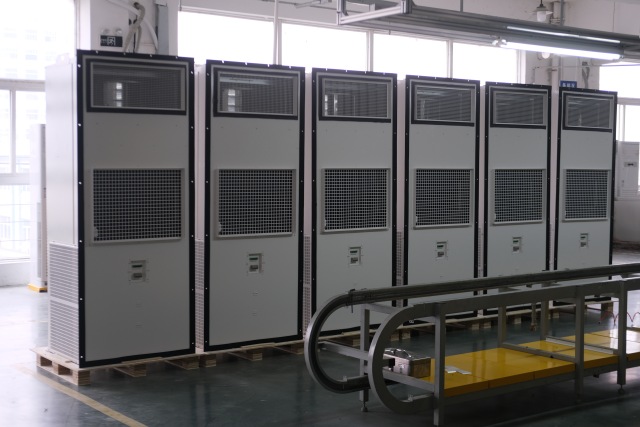

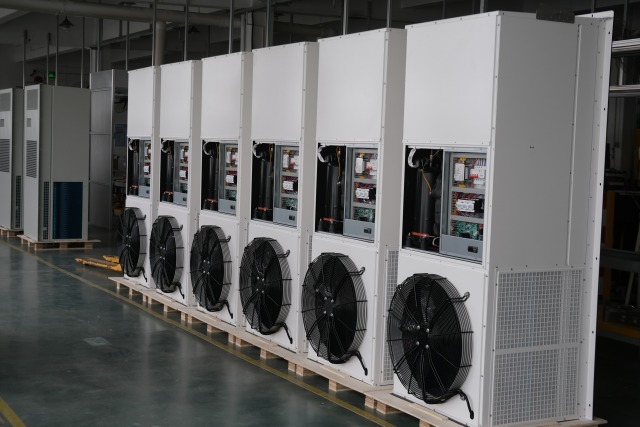

Detailed Photos

Technical Parameters

Item	Specification
Cooling Capacity	17.5 kW
Power Supply	3~380VAC
Installation Type	Wall-mounted
Control System	Microprocessor controller
Operation Modes	Cooling / Heating / Dehumidification
Application Area	Electrical Room
Structure	Packaged Industrial Design

Applications

Electrical rooms

Switchgear rooms

MCC rooms

Power distribution rooms

Industrial control and inverter rooms

Installation & Operation

The wall-mounted design allows the unit to be installed directly on the electrical room wall, saving floor space and keeping airflow organized. The packaged structure enables quick on-site installation with minimal commissioning work. Once installed, the unit operates automatically to maintain the set temperature for continuous equipment protection.

Model Selection

Available wall-mounted electrical room air conditioners:
3kW / 4kW / 5kW / 7.5kW / 10kW / 12.5kW / 15kW / 20kW / 25kW / 30kW / 35kW

RFQ

To select the most suitable model, please provide:

Electrical room size and layout
Estimated heat load
Ambient temperature conditions
Available power supply
Target indoor temperature

Contact us for a detailed selection and quotation.
