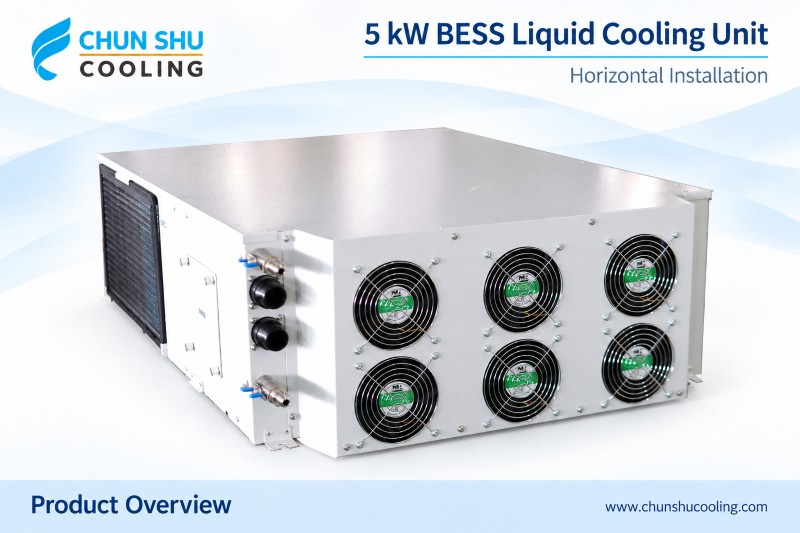

5KW Horizontal Liquid Cooling Chiller for BESS Cabinet

Designed for horizontal installation in BESS cabinets and energy storage systems, CS L 50 H A combines 5 kW liquid cooling with 2 kW PTC heating. It uses a DC inverter compressor, speed-controlled DC fans and pump, stainless steel plate heat exchanger and expansion valve. The unit supports 220 VAC ±15%, 45 L/min coolant flow, -30°C to +55°C operation, R134a/R410A refrigerants, NW26 quick connectors, and RS485 plus CAN communication. Optional condensation dehumidification is available.

Availability:

Quantity:



Inquire Add to Basket

Model:
CS L 50 H A
Brand:
CHUNSHU COOLING

Product Description

5 kW Horizontal BESS Liquid Cooling Unit

Model CS L 50 H A | Customized Configuration

Designed for battery energy storage systems, this horizontal liquid cooling unit combines active cooling with PTC heating to manage coolant temperature. Its DC inverter compressor, speed-controlled fans and circulation pump support controlled operation. RS485 and CAN communication enable integration with the system controller, while optional battery compartment dehumidification helps reduce condensation.

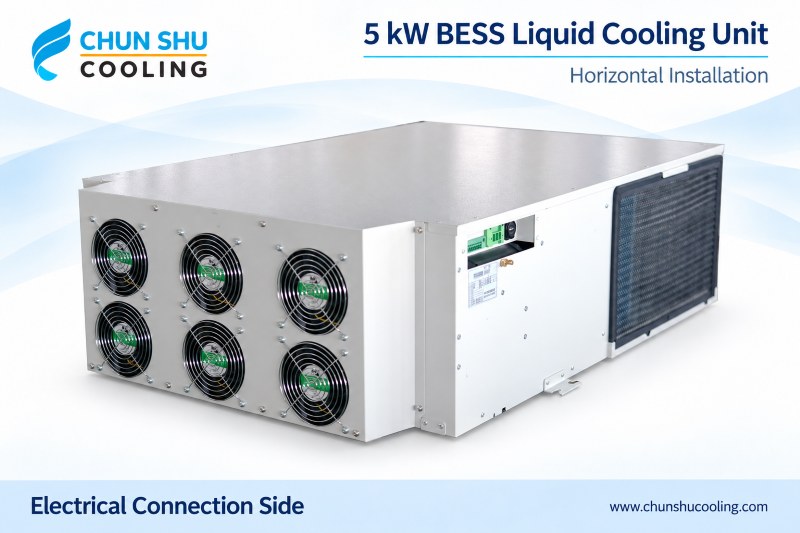

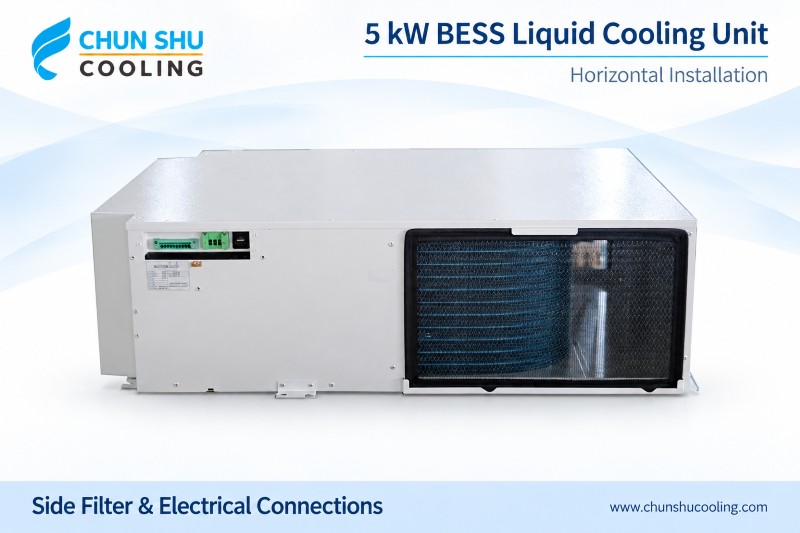

5KW-bess liquid cooling unit_Horizontal (2)

5KW Horizontal Liquid Cooling

5KW-bess liquid cooling unit_Horizontal (3)

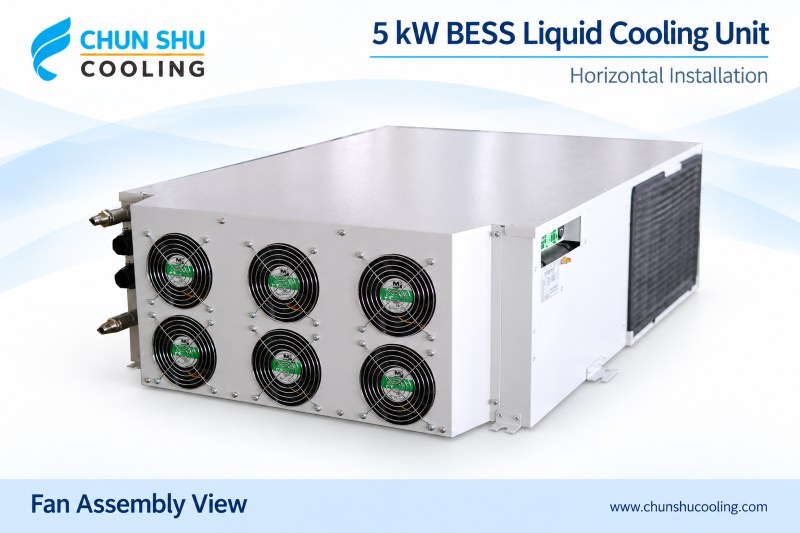

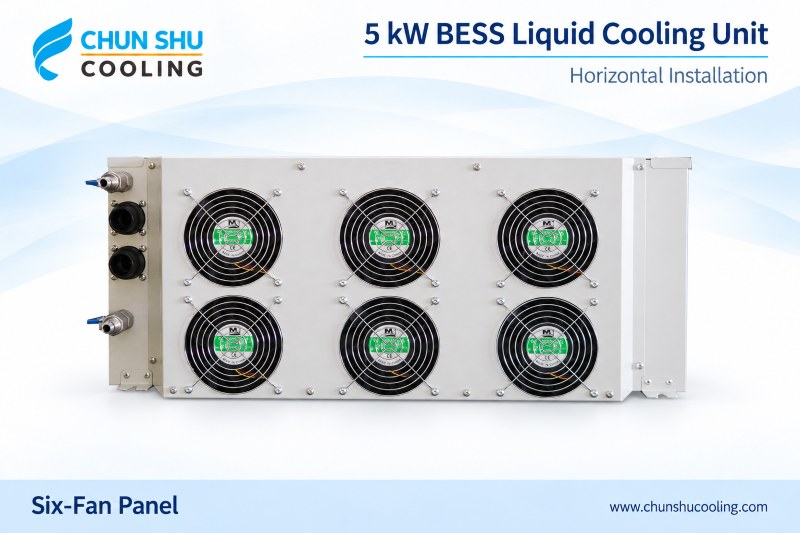

5KW Horizontal Liquid Cooling Unit_Fan

Key Specifications

Parameter	Specification
Power supply	220 VAC ±15%, single phase, 50/60 Hz
Rated cooling capacity	5.0 kW at 18°C liquid / 35°C ambient
Rated cooling input power	2.15 kW at 18°C liquid / 35°C ambient
Heating capacity	2.0 kW, PTC heater
Cooling current rated / maximum	10.5 A / 15.0 A
Heating current rated / maximum	10.5 A / 18.0 A
Rated coolant flow	45 L/min at 90 kPa
Operating ambient temperature	-30°C to +55°C
Refrigerant configurations	R134a / C / R410A
Dimensions W × H × D	703 × 280 × 932 mm, excluding flanges
Net weight	47 kg
Maximum noise level	72 dB(A)
Corrosion protection	C3
Coolant supply and return	NW26 quick connectors
Communication	Modbus via RS485 and CAN bus

Cooling capacity and input power are rated at 18°C liquid temperature and 35°C ambient air temperature.

Product Features

Controlled cooling and heating. A DC inverter rotary compressor, DC speed-controlled fans and pump, stainless steel plate heat exchanger and expansion valve manage heat transfer. The PTC heater supports low-temperature operation.

Flexible temperature control. Control modes use coolant supply temperature, coolant return temperature or battery cell temperature. Built-in fault detection supports system monitoring.

Cabinet integration. The horizontal housing uses SGCC steel with a RAL7035 finish. Coolant quick connectors and charge/drain valves provide access for connection and servicing.

Optional Battery Compartment Dehumidification

A condensation dehumidification module is available with a capacity of 25 mL/h at 30°C and 50% RH. The module provides 50 m³/h circulating airflow and uses a Ø50 mm air connection.
