| Cooling Capacity: | |
|---|---|
| Control board: | |
| Rated voltage: | |
| Communication : | |
| Color: | |
| Material: | |
| Quantity: | |
CS A 50 W A
chunshucooling
94000

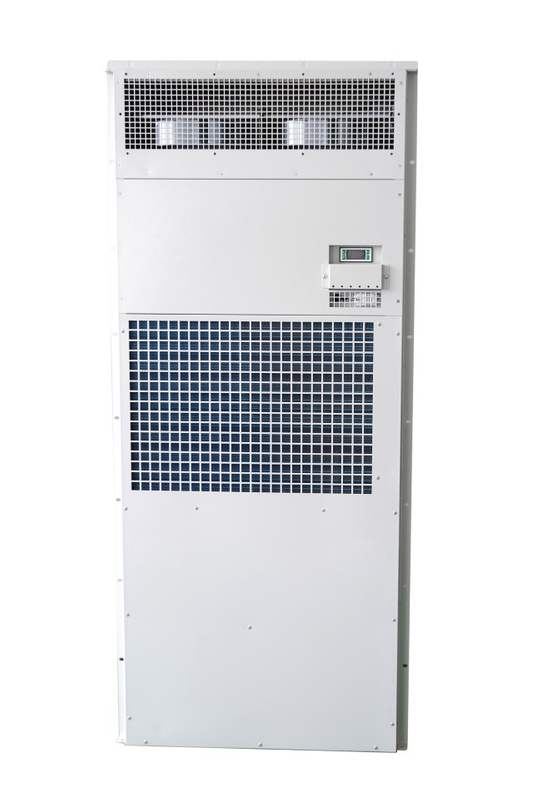

This wall-mounted air conditioner uses a packaged industrial design with robust metal enclosure, suitable for medium-sized electrical rooms and control rooms. It is supplied as a complete unit to support fast installation and simplified commissioning. The design emphasizes stable performance and convenient maintenance, helping ensure reliable temperature control for electrical equipment in continuous operation.
.
Exquisite craftsmanship and high-quality well-known accessories ensure more stable and reliable products. Realise telemetry, telecommunication, remote adjustment, multiple automatic protection and comprehensive fault self-diagnosis function, high protection level design, suitable for harsh outdoor environment.
With upflow design, the cold air is blown out farther. Air-cooled, wall-mounted, indoor and outdoor packaging. Suitable for micro data centres, base stations, server rooms, energy storage, photovoltaic wind power generation, power equipment nacelles, etc.
Key Features
Technical Parameters
Name | Integrated Wall-mounted Air Conditioner |
Model | CS A 50 W A |
Mounting Method | Wall-mounted |
Power Supply | 230±15%VAC |
Cooling Capacity (L35℃/L35℃) | 5000W |
Power Consumption(L35℃/L35℃) | 1800W |
Cooling Capacity(L35℃/L55℃) | 3000W |
Power Consumption(L35℃/L55℃) | 2140W |
Internal Airflow | 1250 m³/h |
Working Temperature Range | -30℃~+45℃ |
Max Noise Level | 69dB(A) |
IP Grade | IP55 |
Net Weight | 100Kg |
Refrigerant | R410a |
Dimensions | 1300x600x320 (mm, HxWxD) |
CE&RoHS Compliant | YES |
Surface Treatment | Outdoor type powder coating, standard color: RAL7035 |
Heater | 3000W |

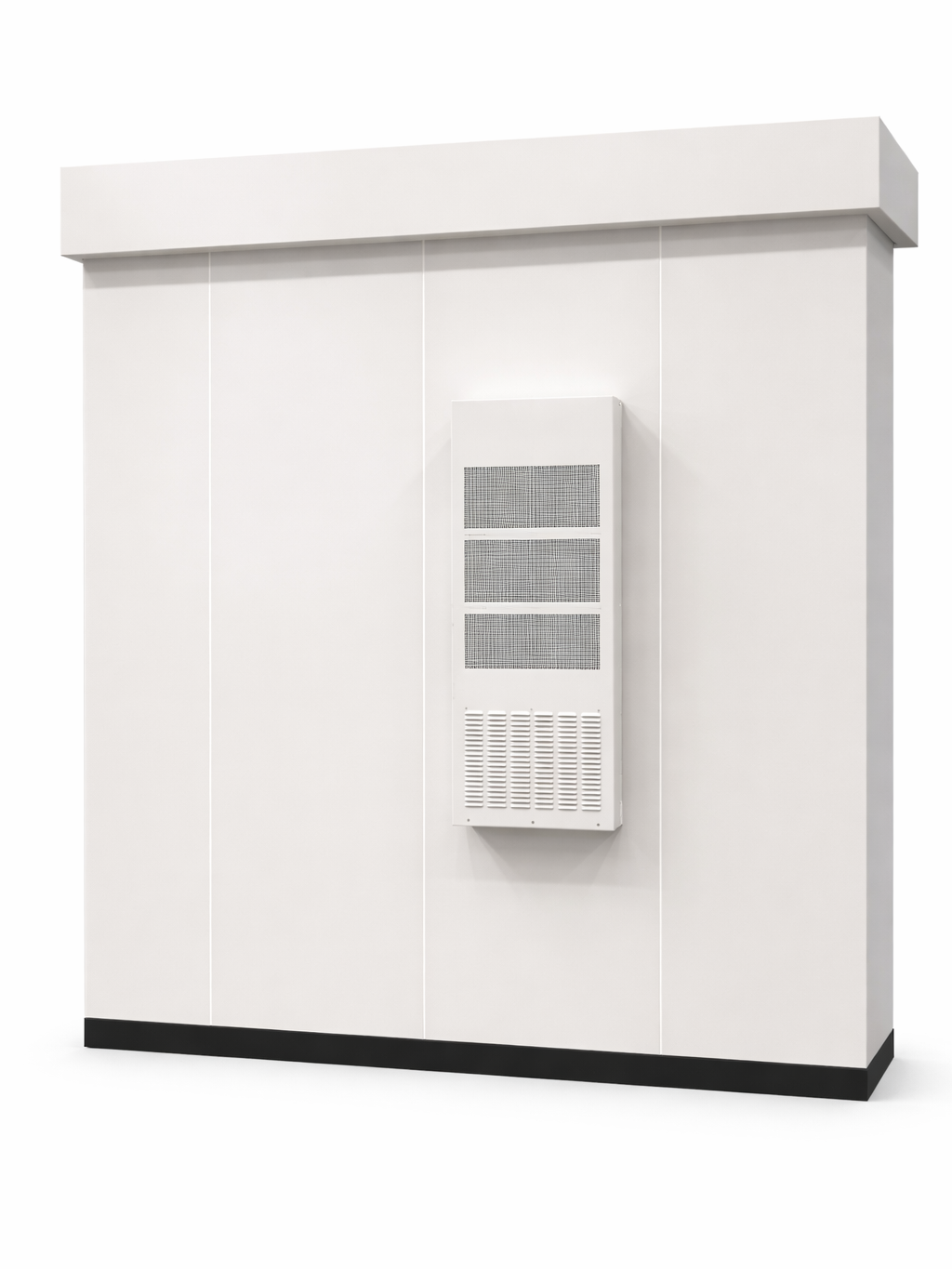

Applications
