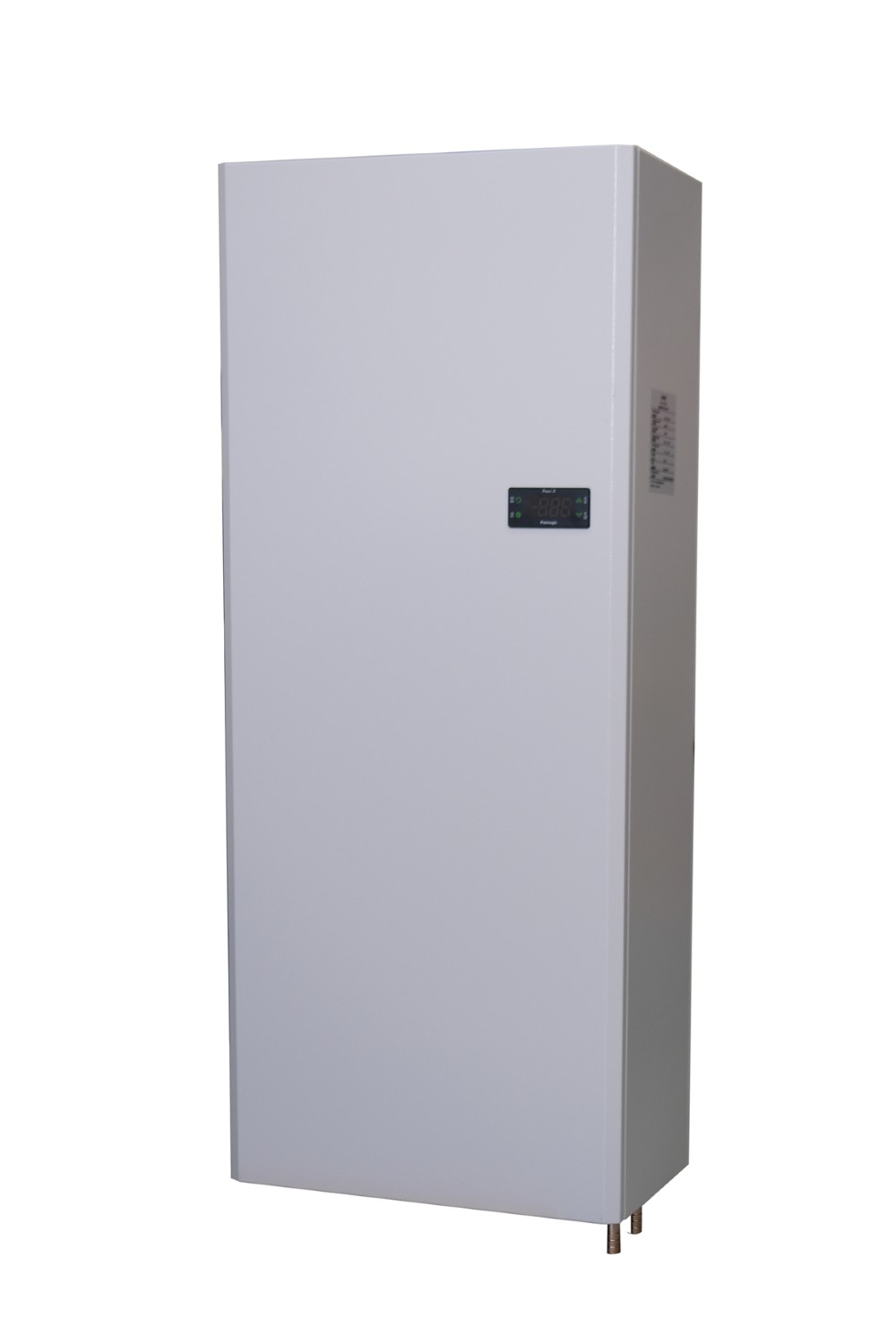

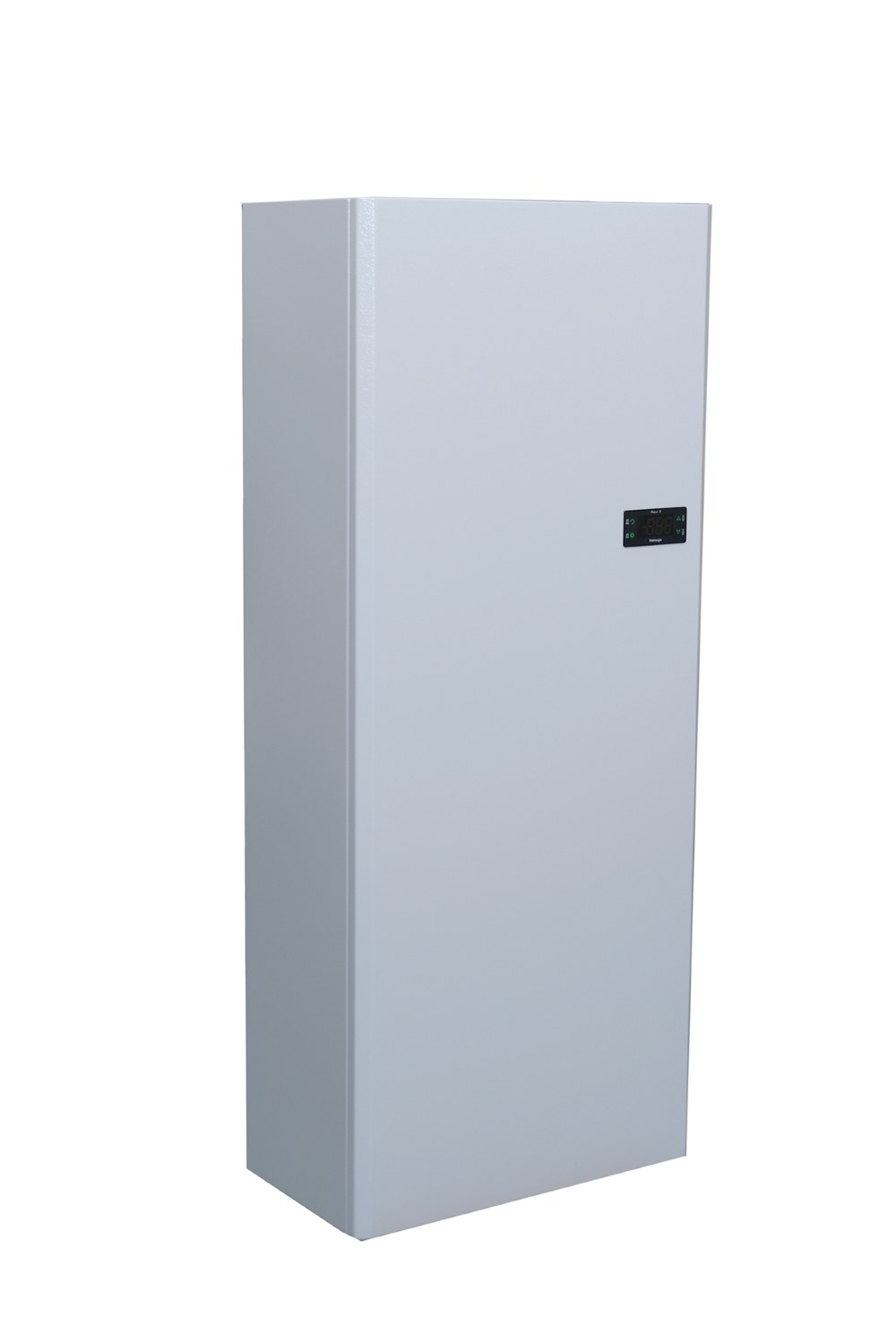

Our Air to Water Heat Exchanger is a high-efficiency closed-loop enclosure cooling solution designed specifically for indoor electrical cabinets and equipment enclosures. It removes heat from cabinet air and transfers it to a circulating water loop—without exchanging air with the surrounding room. This keeps sensitive electronics protected from dust and contaminants while maintaining stable cabinet temperature for reliable operation.
Unlike refrigerant-based air conditioners, this solution uses no refrigerant and no compressor, making it a green, energy-saving choice for industrial control cabinet cooling.
Closed-Loop Cooling (Sealed Cabinet Air Path)
Cabinet air circulates internally through the heat exchanger core—helping maintain enclosure protection and preventing ambient contaminants from entering.
Refrigerant-Free, Eco-Friendly
No refrigerant, no leakage risk, and lower environmental impact compared with compressor cooling.
Energy-Saving Operation
Only fan power is required on the cabinet side; heat is rejected through the facility water loop.
Stable Cooling for Industrial Electronics
Ideal for PLC, VFD/drive, power supply, and automation components requiring steady internal temperature.
Low Maintenance
Simple structure, fewer wear components, and long-life industrial design (water quality management recommended).

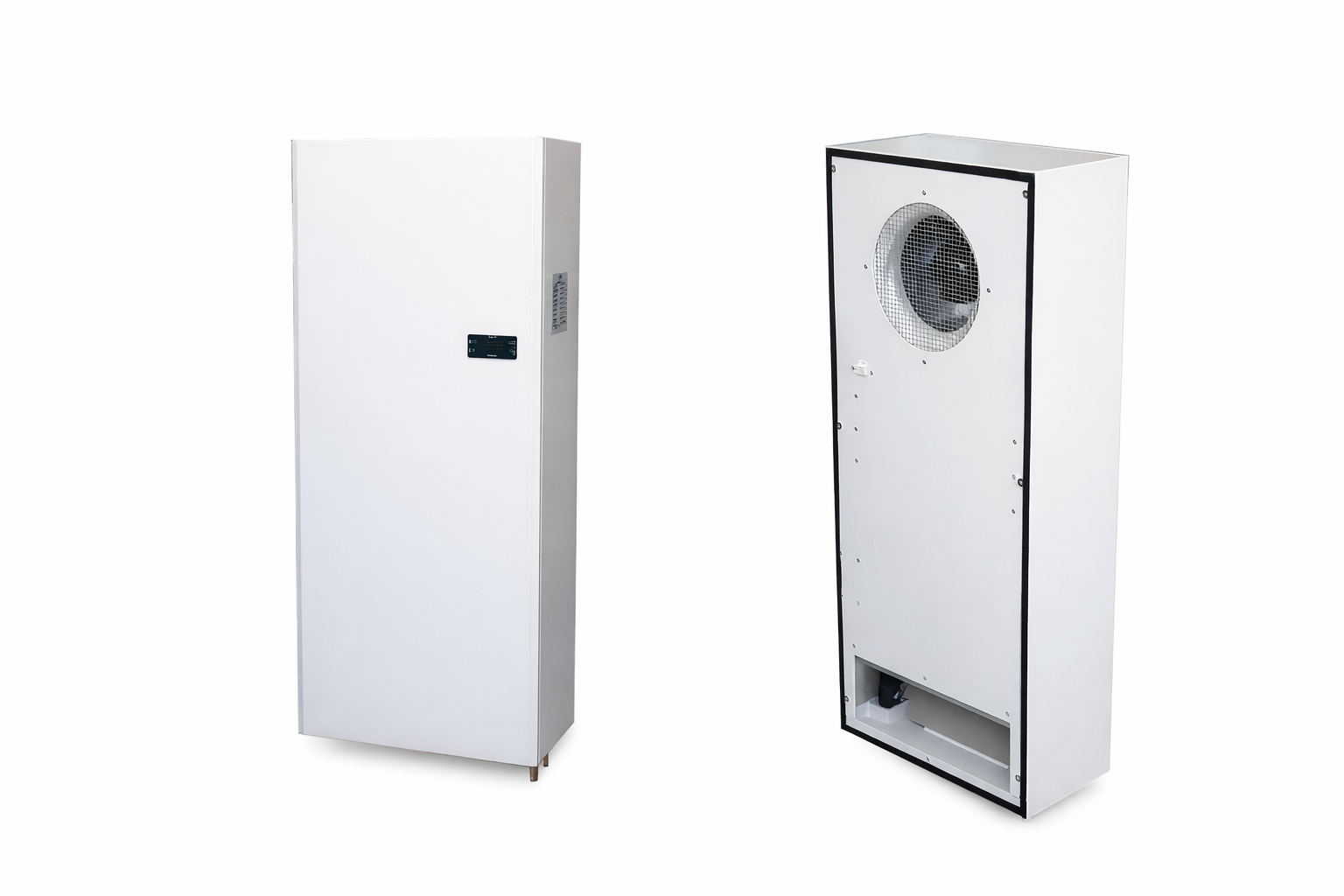

External circulation side

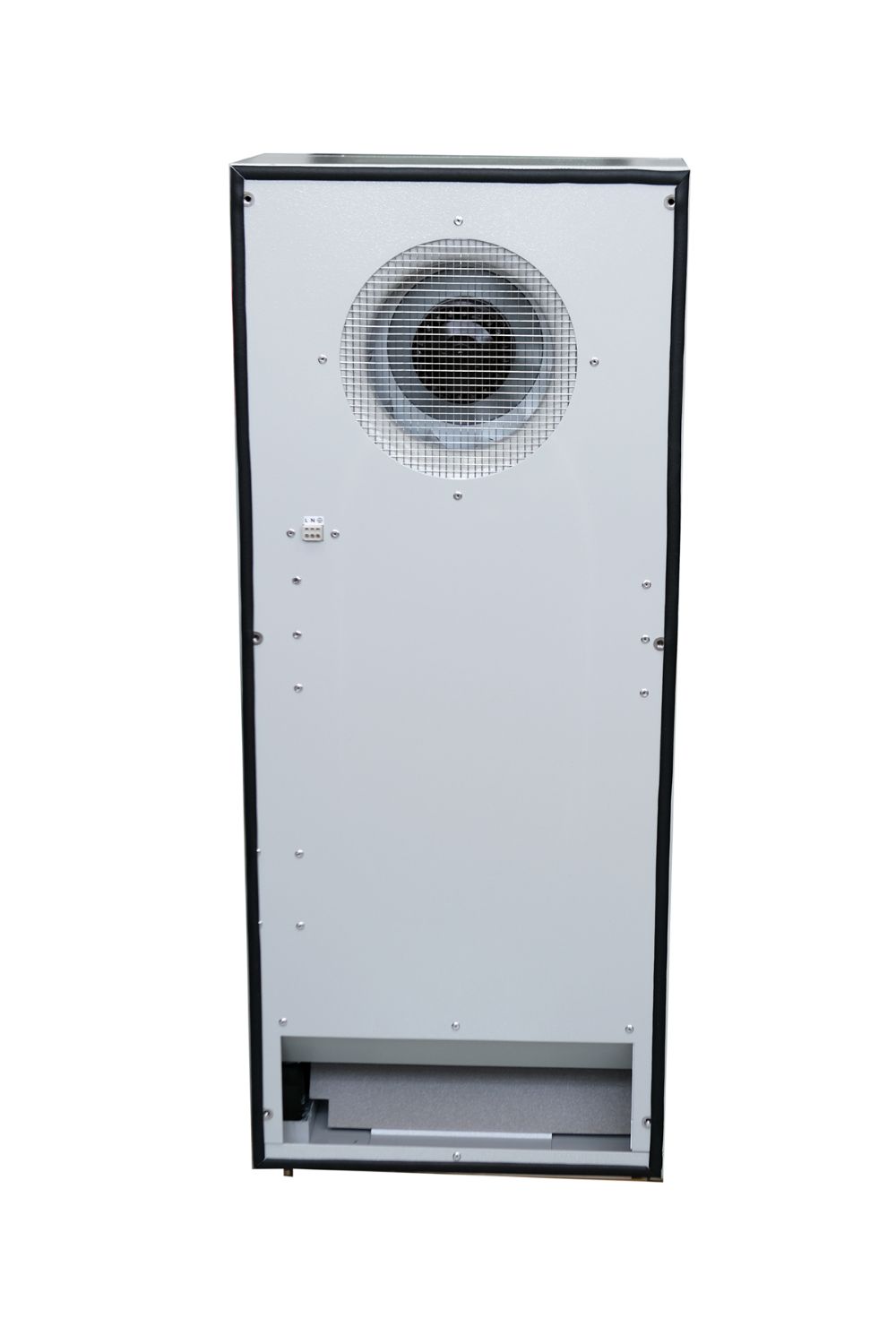

Internal circulation side

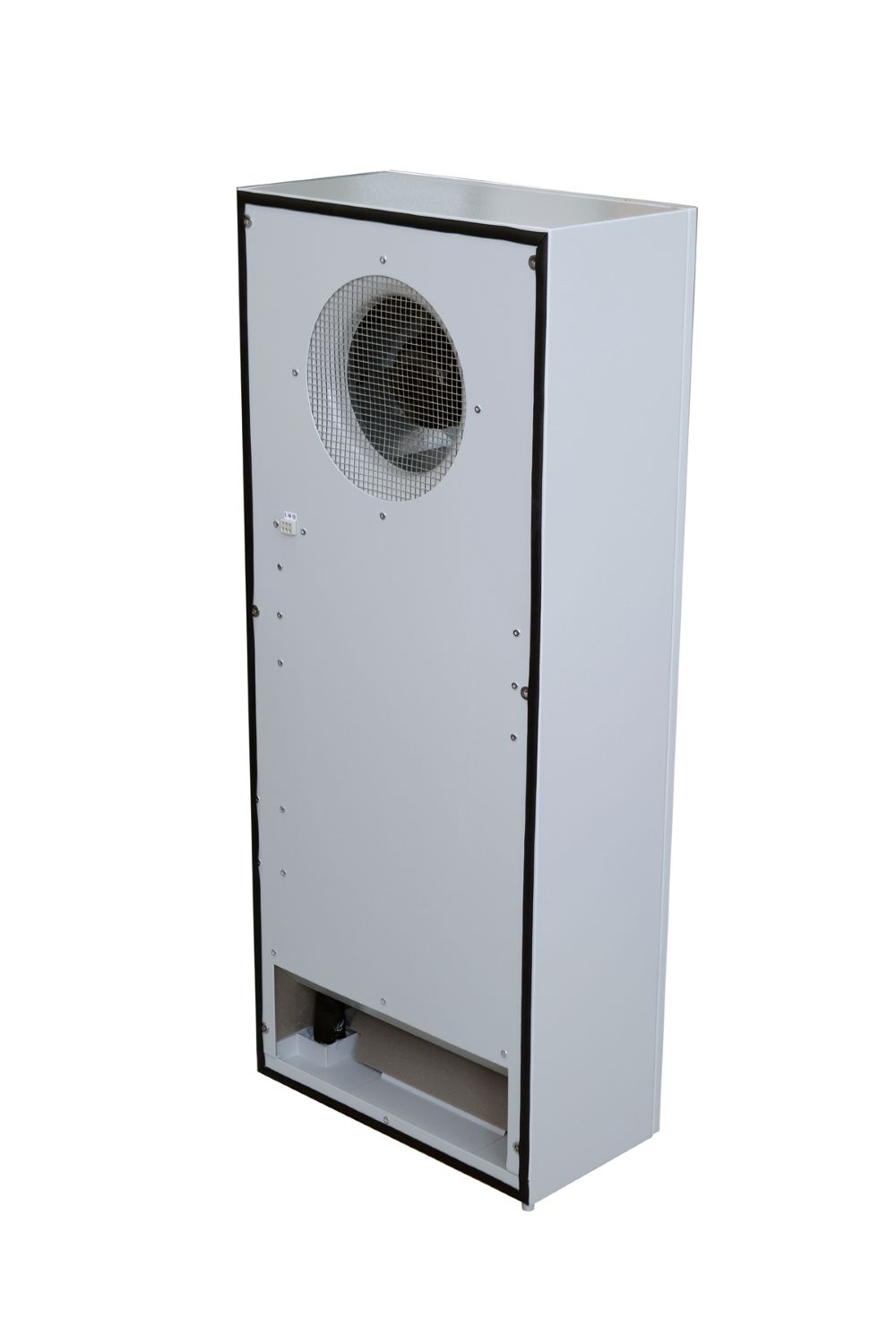

Side view
Designed for indoor environments such as:
Industrial control cabinets and electrical enclosures
Automation panels (PLC / IO / control modules)
Drive & inverter cabinets (VFD / servo drives)
Power distribution and instrumentation cabinets
Manufacturing workshops, MCC rooms, and indoor equipment rooms
Hot cabinet air is drawn through the internal fan and passes across the heat exchanger coil.
Cooling water flows through the coil and absorbs heat from the cabinet air.
Cooled cabinet air returns into the enclosure, reducing cabinet internal temperature.
The warmed water returns to the building/plant cooling system (chilled water / cooling tower / dry cooler loop).
With sufficiently low water inlet temperature, enclosure air can be cooled effectively and steadily.
Mounting: Side-mounted (wall-mounted on enclosure side panel)
Power Supply: 1~220VAC
Protection: IP55 (towards enclosure side)
Housing Material: SGCC steel
Surface Finish: Powder-coated RAL7035 (Light Grey)
| Model Series | Cooling Capacity | Recommended Use |
|---|---|---|
| CS AW 500 S A | 500 W | Small control cabinets |
| CS AW 1000 S A | 1000 W | Medium electrical enclosures |
| CS AW 2000 S A | 2000 W | Drive / inverter cabinets |
| CS AW 3000 S A | 3000 W | Larger automation cabinets |
| CS AW 5000 S A | 5000 W | High heat-load equipment enclosures |
Capacity depends on water inlet temperature, water flow, and cabinet airflow conditions.
High-efficiency finned coil heat exchanger core (air-to-water thermal transfer)
Rugged SGCC metal housing, industrial-grade coating
Designed for continuous 24/7 industrial operation
Optimized airflow channel for uniform cabinet temperature distribution
Cut-out on cabinet side panel, mount and seal to maintain IP protection
Connect water inlet/outlet to facility loop
Connect 1~220VAC power and temperature control signal (if required)
Periodic inspection of water connections and seals
Keep cooling water quality within recommended limits (scaling/corrosion prevention)
Verify fan operation and cabinet airflow
Q1: Is this product for outdoor cabinets?
This model configuration is designed for indoor electrical cabinets. If you need outdoor deployment, the cabinet design and site conditions should be evaluated separately.
Q2: Does it use refrigerant?
No. It is refrigerant-free and transfers heat using a water loop.
Q3: Does it exchange air with the room?
No. It is closed-loop enclosure cooling, keeping cabinet air inside while transferring heat through the coil.
