How to Choose a 5kW Precision Split Air Conditioner for Server Rooms and Equipment Rooms

Why Equipment Rooms Need Dedicated Cooling

Server rooms, UPS rooms, network rooms and industrial equipment rooms are very different from normal office spaces. In these rooms, electronic equipment generates heat continuously, even when no people are inside. Servers, switches, UPS systems, batteries and control cabinets usually operate 24 hours a day, so the cooling system also needs to work reliably for long periods.

A standard comfort air conditioner is mainly designed for human comfort. However, equipment room cooling requires stable temperature control, continuous operation, high reliability and better system monitoring. For small data centers and technical rooms, a precision split wall-mounted air conditioner is often a practical and cost-effective cooling solution.

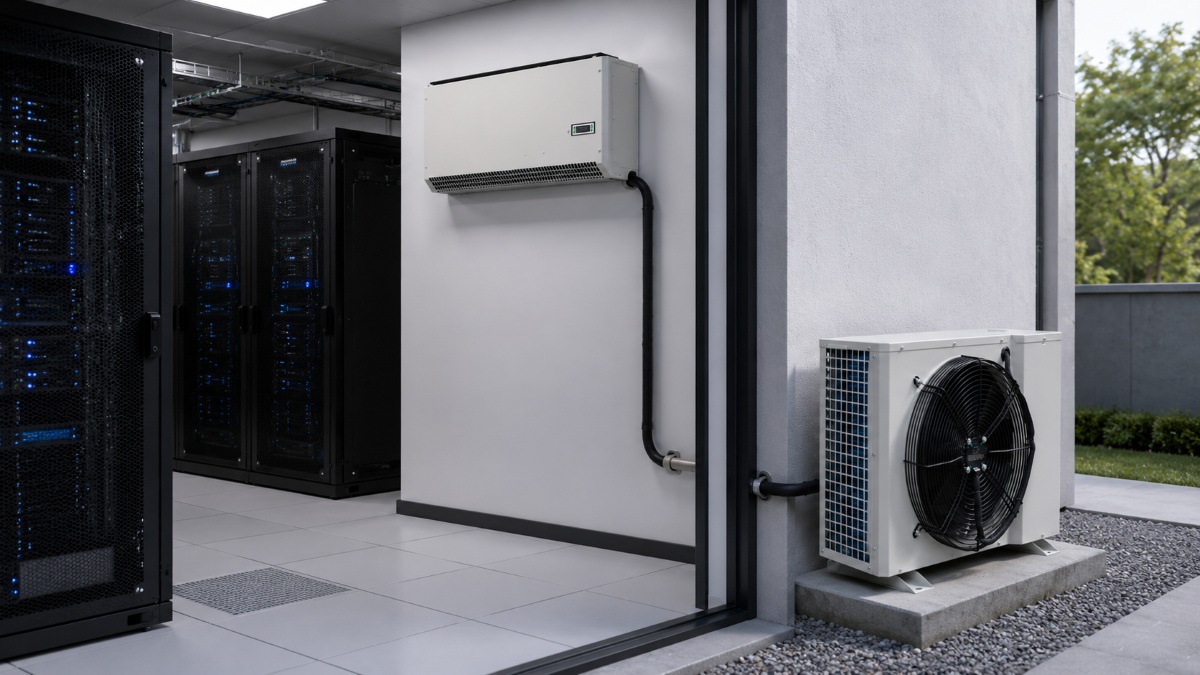

What Is a Precision Split Wall-Mounted Air Conditioner?

A precision split wall-mounted air conditioner consists of two main parts:

Indoor Unit
The indoor unit is installed on the wall inside the equipment room. It supplies cool air to the room and helps maintain a stable temperature for servers and electrical equipment.

Outdoor Condensing Unit
The outdoor unit is installed outside the room or building. It rejects heat to the outdoor environment through the condenser coil and fan.

This split design helps save indoor space and improves heat rejection efficiency. It is especially suitable for small server rooms, edge data centers, UPS rooms, telecom shelters and industrial equipment rooms where floor space is limited.

Key Factors When Selecting a 5kW Server Room Air Conditioner

1. Cooling Capacity

The first factor is cooling capacity. For small equipment rooms, a 5kW cooling unit can be suitable for moderate heat loads from servers, UPS systems, network equipment or control cabinets.

CHUNSHU CS A 50 F A provides 5000W cooling capacity under L35℃/L35℃ condition. Under high ambient condition L35℃/L55℃, it can still provide 3000W cooling capacity, making it suitable for high-temperature industrial and shelter applications.

2. Power Supply

Power supply should match the site condition. Many small server rooms and equipment rooms use single-phase power. A 230VAC split cooling unit is easier to deploy in many small technical rooms compared with large three-phase precision air conditioners.

The CHUNSHU 5kW split air conditioner uses 1P+N~230VAC±10% / 50Hz power supply, suitable for small and medium equipment room applications.

3. High Ambient Operation

Outdoor ambient temperature is important, especially for telecom shelters, tunnel shelters, container rooms and industrial sites. If the outdoor unit cannot operate under high ambient conditions, the cooling system may lose capacity or stop during hot weather.

For harsh environments, it is better to choose a high-ambient split air conditioner with reliable compressor and condenser design. CHUNSHU CS A 50 F A is designed for a wide working temperature range from -30℃ to +60℃.

4. Refrigerant and Compressor

The compressor is the core component of the air conditioning system. For industrial and high-temperature applications, compressor reliability is very important.

CHUNSHU CS A 50 F A adopts a Hitachi high-temperature R134a rotary compressor, providing stable operation under demanding conditions. R134a is commonly used in high-temperature refrigeration and industrial cooling applications.

5. Airflow and Temperature Control

Server rooms and equipment rooms require stable air circulation. Insufficient airflow may cause local hot spots around equipment racks or electrical cabinets.

The unit provides 1200 m³/h internal airflow, helping deliver stable cooling air inside the room. With a PID intelligent controller, the system can achieve more accurate temperature control compared with simple on/off operation.

6. Monitoring and Alarm Function

For critical equipment rooms, cooling failure should be detected quickly. Remote monitoring and alarm output are very important for unmanned sites.

The CHUNSHU unit supports RS485 Modbus communication, remote control, auto restart and dry contact alarm output. These functions make it easier to integrate the air conditioner with a BMS, monitoring system or site alarm system.

7. Installation Flexibility

The split mounting design allows the indoor unit and outdoor unit to be installed separately. The indoor unit can be wall-mounted high in the room, while the outdoor unit can be installed outside the wall, on a bracket or on a concrete base.

This design is suitable for:

small data centers;
server rooms;
UPS rooms;
network rooms;
battery rooms;
control rooms;
telecom shelters;
industrial equipment rooms;
tunnel shelters.

Why Not Use a Comfort Air Conditioner?

Comfort air conditioners are usually designed for people, not machines. In equipment rooms, the heat load is mostly dry heat from electronic equipment. The cooling system needs to run continuously and maintain a stable environment.

A precision split air conditioner is more suitable for equipment room cooling because it can provide:

continuous cooling operation;
stable temperature control;
higher reliability for critical rooms;
alarm output and remote monitoring;
industrial-grade structure;
better adaptation to high ambient temperature;
flexible split installation.

For small data centers and equipment rooms, this type of unit can provide a balance between reliability, cost and installation convenience.

Recommended Solution: CHUNSHU 5kW Precision Split Wall-Mounted Air Conditioner

CHUNSHU CS A 50 F A is a 5kW precision split wall-mounted air conditioner designed for data centers, server rooms, equipment rooms and high-ambient industrial shelters.

The system includes a wall-mounted indoor cooling unit and an outdoor condensing unit. It is designed for reliable cooling, flexible installation and easy system integration.

Main Features

5kW cooling capacity
230VAC single-phase power supply
R134a high-temperature compressor
PID intelligent temperature control
RS485 Modbus communication
Dry contact alarm output
Cooling and independent dehumidification
Auto restart and remote control
-30℃ to +60℃ working temperature range
Split mounting design
RAL7035 outdoor powder coating

Technical Data

Typical Applications

Small Data Centers

For small data centers and edge computing rooms, this unit provides stable cooling without occupying valuable floor space.

Server Rooms

It helps remove continuous heat generated by servers, storage systems and network equipment.

UPS Rooms

UPS systems generate heat during operation. Stable cooling can help improve system reliability and battery performance.

Telecom Shelters

The high ambient design makes the unit suitable for telecom shelters and remote equipment rooms.

Industrial Equipment Rooms

For PLC rooms, control rooms and electrical rooms, the unit provides reliable thermal management for sensitive equipment.

Conclusion

Choosing the right air conditioner for a server room or equipment room is not only about cooling capacity. It is also about reliability, high ambient performance, control accuracy, remote monitoring and installation flexibility.

For small data centers, UPS rooms, network rooms and industrial equipment rooms, a 5kW precision split wall-mounted air conditioner is a practical cooling solution. With 230VAC power supply, R134a high-temperature compressor, PID intelligent control and RS485 Modbus communication, CHUNSHU CS A 50 F A provides stable and reliable cooling for 24/7 critical equipment applications.

Looking for a 5kW split air conditioner for your server room or equipment room? Contact CHUNSHU for technical support and project selection.
