1）Efficient accessories: reliable and energy-saving
2）Intelligent control: fault detection, MODbusRS485+CANbus communication interface
3）Wide operating temperature range: suitable for various environmental applications
4）High protection level: perfect for outdoor environments
5）Equipped with external circulation air inlet screen: to prevent catkins from clogging the radiator
6）Low Temperature Cooling Function: Ensures proper operation of cooling in winter environments
7）Liquid cooling medium: suitable for ethylene glycol aqueous solution applications Integrated external circulation air intake screen to avoid fluff clogging
Technical Parameters
Name | 8.0KW Vertical Installation Liquid Cooling System |
Model | CS L 80 V A |
Power Supply | 1P~220VAC±15% 50Hz/60Hz |
Cooling Capacity (L35℃/L35℃) | 8000W@W18℃/L45℃ |
Cooling operating power (rated) | 4590W@ W18℃/L45℃ |
Heat capacity(rated) | 2000W(PTC) |
Cooling operating current (rated/max) | 21.5A/24.5A |
Heating operating current (rated/max) | 10.5A/18.0A |
Rated liquid flow (rated) | 50L/m@90Kpa |
Operating temperature range | -30~55℃ |
In-cabin dehumidification (optional) | Condensation dehumidification |
Dehumidifying capacity (optional) | 25ml/h@30℃&50% |
Chamber dehumidification circulating air volume (optional) | 50m3/h |
Maximum noise | 75dB(A) |
Rustproof grade | C3 |
Net weight | 95kg |
Refrigerant | R410a&R134A&R513A |
Installation | Vertical Installation |
Dimensions (without flange) | 275*1040*1150 (mm, W*H*D) |
Product Configuration |
Compressor | DC inverter rotor compressors |
External fan | DC speed-controlled fan |
Circulation pumps | DC electronic speed-controlled pumps |
Liquid heaters | PTC |
Plate heat exchanger | Stainless steel type |
Refrigerant throttling | Expansion valve |
Charge/drain ball valve | Yes |
Housing mechanism | SGCC+RAL7035 |
Temperature control modes | Liquid supply temperature / Liquid return temperature mode / Cell temperature mode |
Liquid line connections | Liquid supply/return: NW26 quick connects |
Dehumidification airline connection | Ø50mm |
Communication port | MODbus-RS485+CANbus |

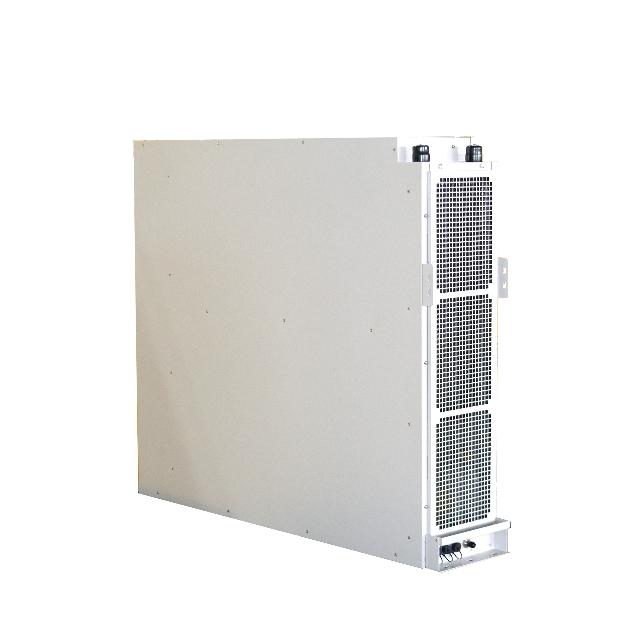

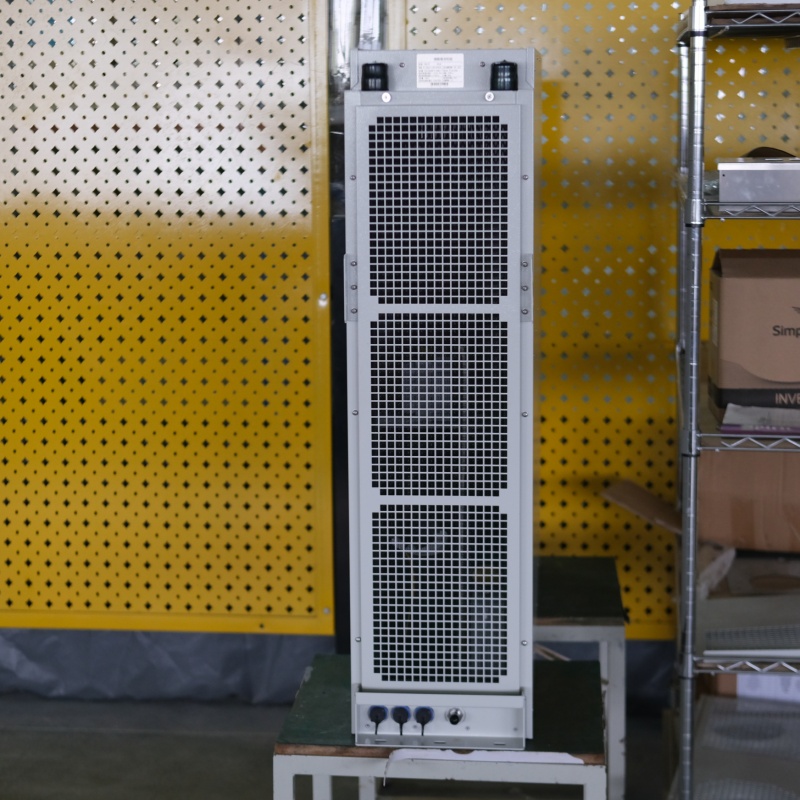

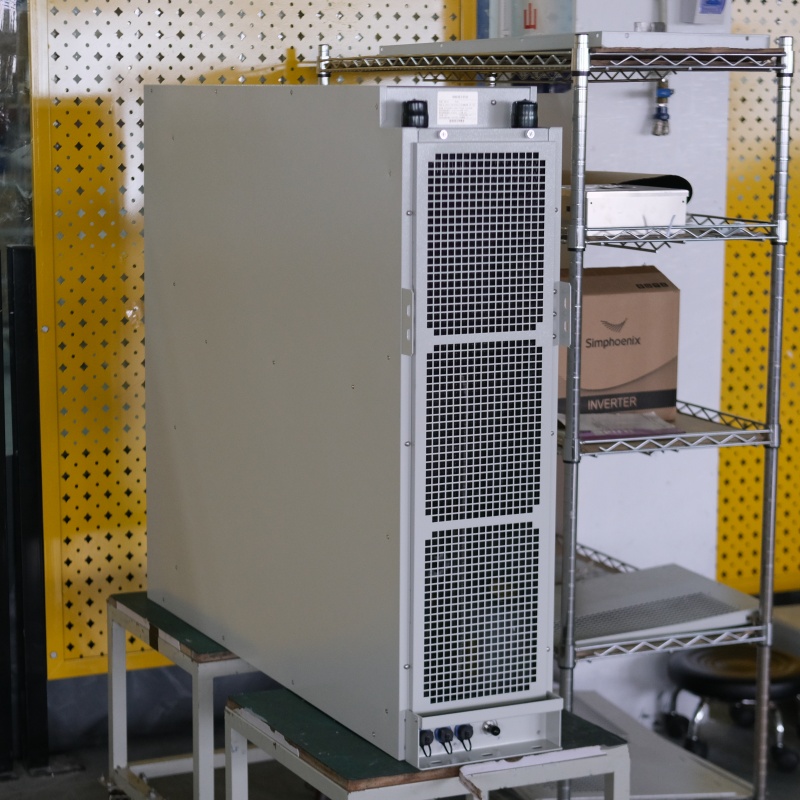

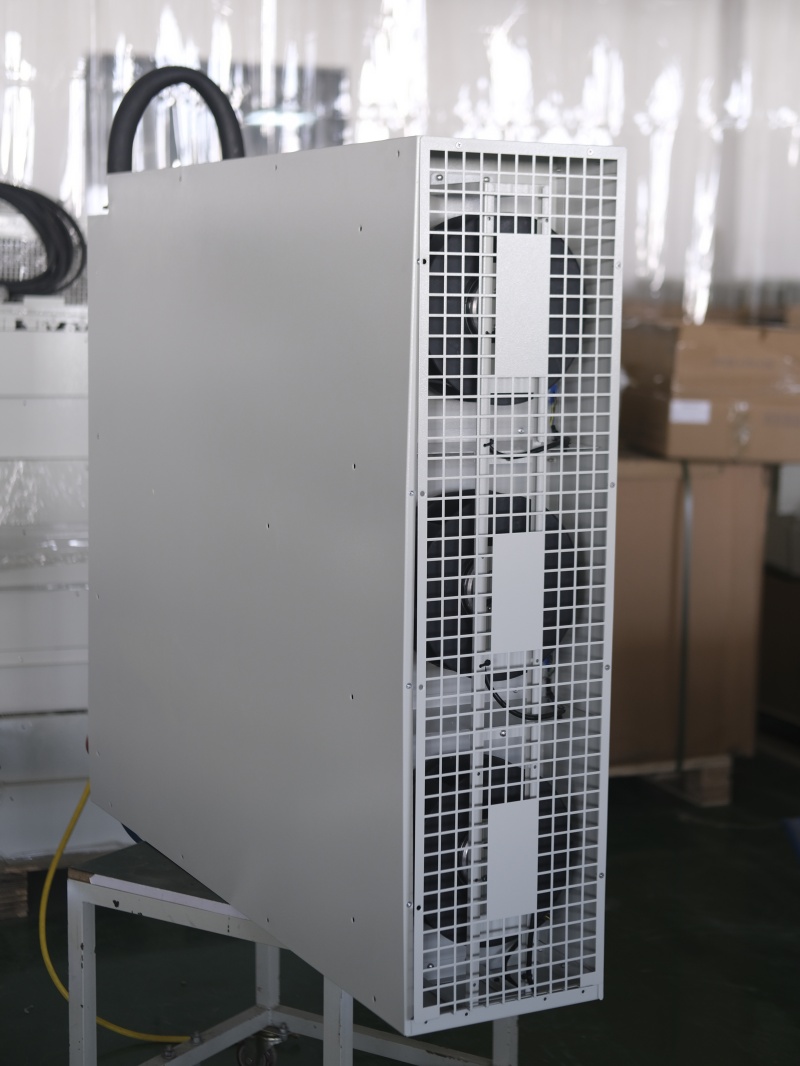

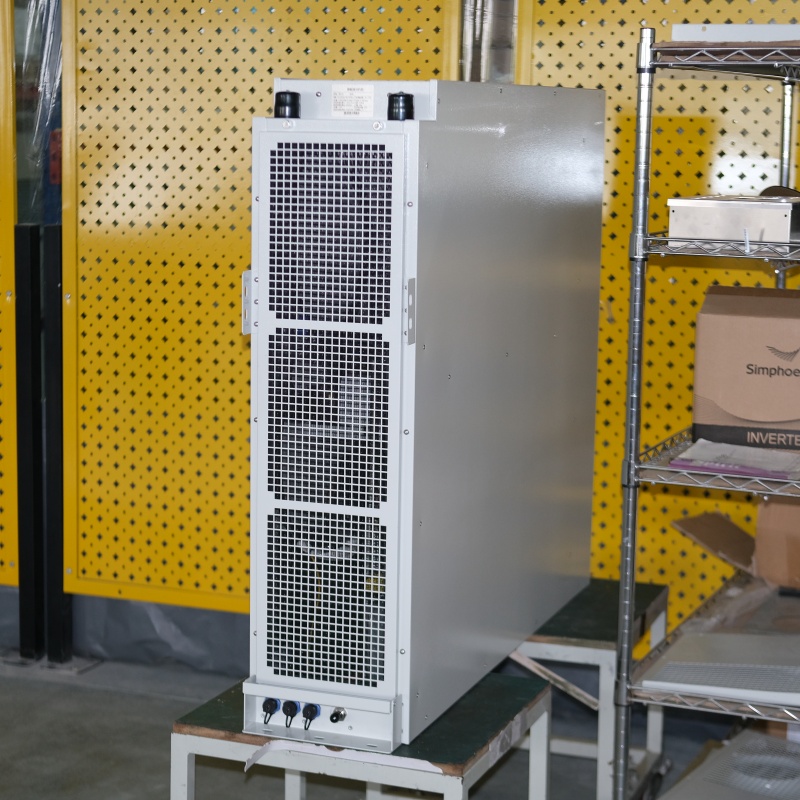

Product Photos
