Views: 100 Author: CHUNSHU COOLING Publish Time: 2025-10-27 Origin: Suzhou Chunshu Automation Co., Ltd.
Australia’s outdoor electrical and control systems face some of the toughest operating conditions in the world—extreme heat, remote-area operation, dust storms, coastal humidity, and long-term exposure to the elements. To ensure uninterrupted performance of critical equipment, a reliable IP55 outdoor cabinet air conditioner becomes essential rather than optional.
Our new-generation Outdoor Electrical Cabinet Air Conditioner (1~220VAC 50/60Hz) is designed specifically to meet Australia’s industrial, mining, energy, and telecom requirements, delivering stable cooling performance even in 55°C desert-grade temperatures.

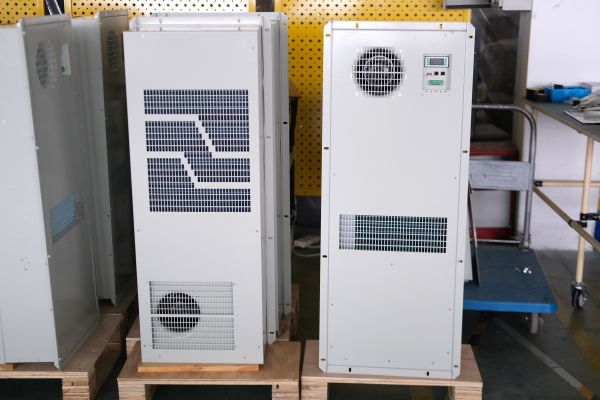

Our enclosure air conditioners are specially designed for outdoor electrical cabinets, control panels and equipment enclosures, offering stable closed-loop cooling for Australian industrial applications.

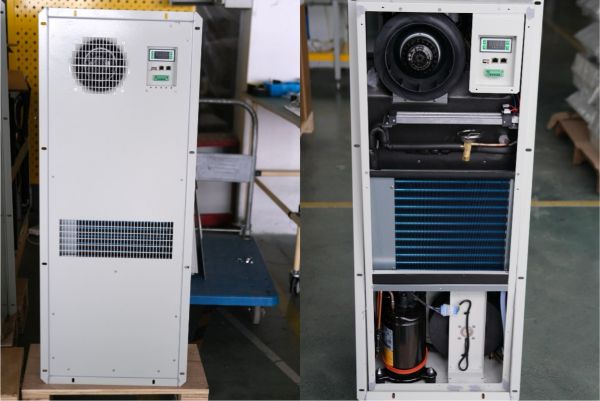

Side mounted AC

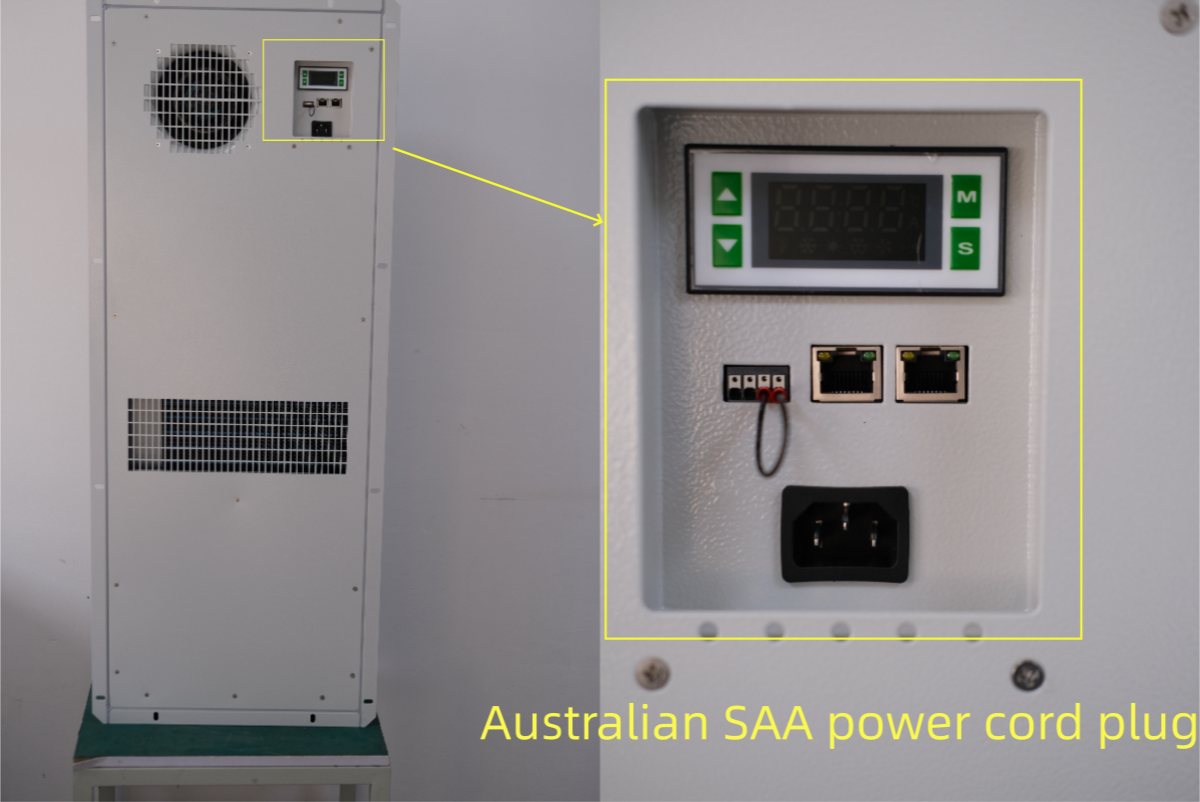

IP55/RS485 communication

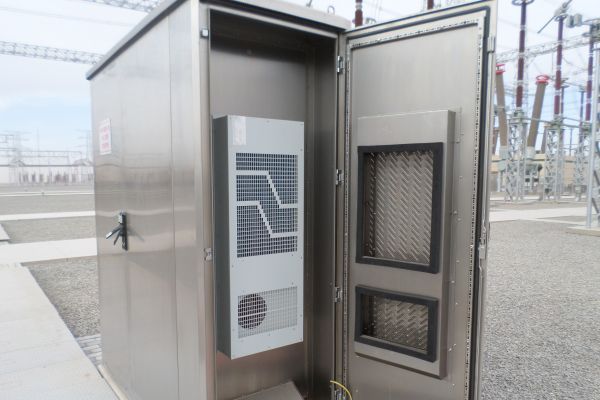

Outdoor Enclosure
Australian outdoor sites often experience dust, sand, heavy rain, and salt-laden winds.
An ordinary cooling fan or indoor-style A/C cannot survive these elements.
Our unit features:
Full IP55 protection
Completely closed-loop cooling (no dust entering cabinet)
Corrosion-resistant structure suitable for mines, coastal areas, solar farms, and substations
This ensures stable cooling even in harsh and unpredictable climates.
Australia’s energy and telecom infrastructure includes large numbers of unmanned outdoor cabinets across remote regions.
To support long-distance monitoring and maintenance, the unit provides:
RS485 / Modbus-RTU communication interface
Remote temperature monitoring & parameter adjustment
Real-time alarms (high temperature, compressor fault, door open, etc.)
Compatibility with SCADA, BESS control systems, and industrial PLC platforms
This dramatically reduces on-site maintenance cost and enables “set-and-forget” operation across remote territories.
Unscheduled downtime is unacceptable in Australian industries such as mining, utilities, railways, and power transmission.
The outdoor cabinet A/C is built for:
24/7 continuous duty
Industrial-grade compressor and centrifugal fans
Intelligent PID controller for stable temperature regulation
Over-voltage / under-voltage / over-current protections
Long service life with minimal maintenance
Every unit undergoes full functional testing to guarantee reliability in mission-critical applications.
Central and Western Australia often exceed 50–55°C ambient temperatures, especially in mining areas and open fields.
Our unit is engineered for extreme climates with:
High-temperature rotary compressor (Hitachi / GMCC / equivalent industrial-grade options)
Enlarged condenser & hydrophilic-coated fins
Optimized air duct system for efficient heat extraction
Reliable start-up and operation under direct sunlight conditions
Your electrical cabinet remains cool and safe even during peak summer heat waves.

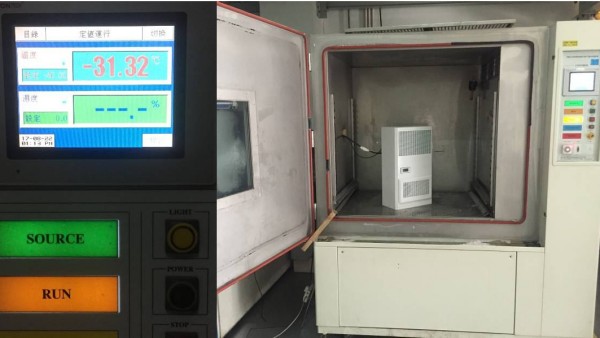

-30℃ Low temperature Testing

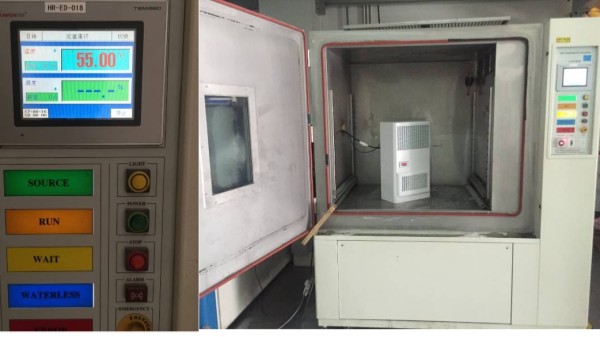

+55℃ High temperature Testing

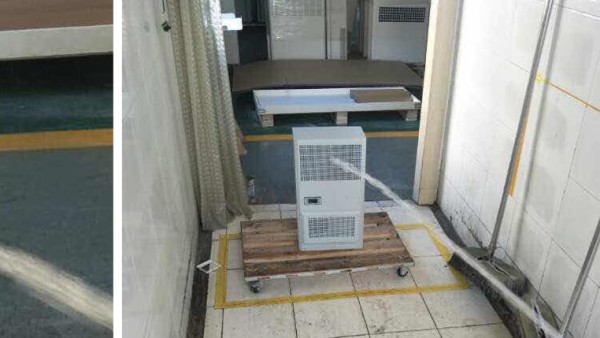

IP 5X Grade
| Ambient Temp | Rated Capacity | Measured Capacity | Stability |
|---|---|---|---|
| 35°C | 2500 W | 2500 W | Excellent |
| 45°C | 2500 W | 2000 W | Stable |
| 50°C | 2500 W | 1850 W | Stable |
| 55°C | 2500 W | 1500 W | Continuous, no shutdown |

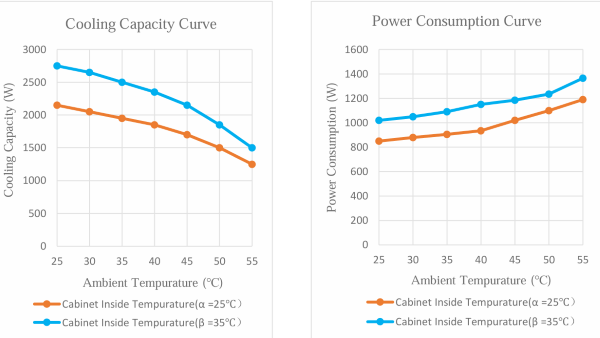

Cooling capacity curve

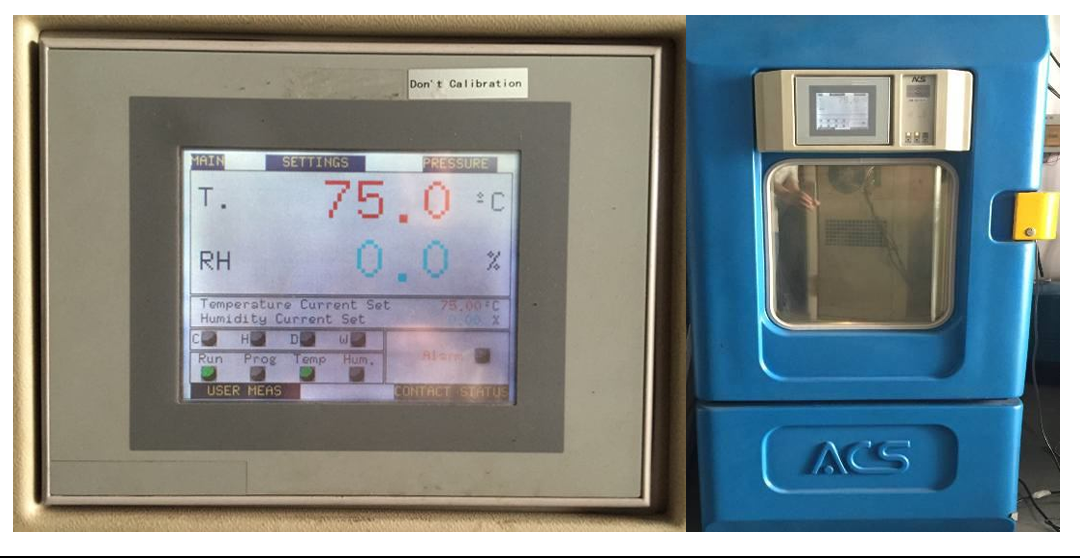

+75℃ High temperature storage testing
Conclusion: After continuously operating in a 55°C test chamber for 168 hours, the performance remained stable with no degradation, making it suitable for the extreme heat conditions in Australia.
This series of outdoor enclosure air conditioners is suitable for:
Outdoor electrical cabinets
Equipment cabinets
Control panels
Telecom enclosures
Solar inverter cabinets
Battery & energy storage cabinets
With IP55 protection, the unit prevents dust, moisture and insects from entering the enclosure, ensuring long-term reliability in harsh Australian environments.
The enclosure air conditioner is designed with three flexible mounting options, allowing easy integration with different outdoor electrical and equipment cabinets:

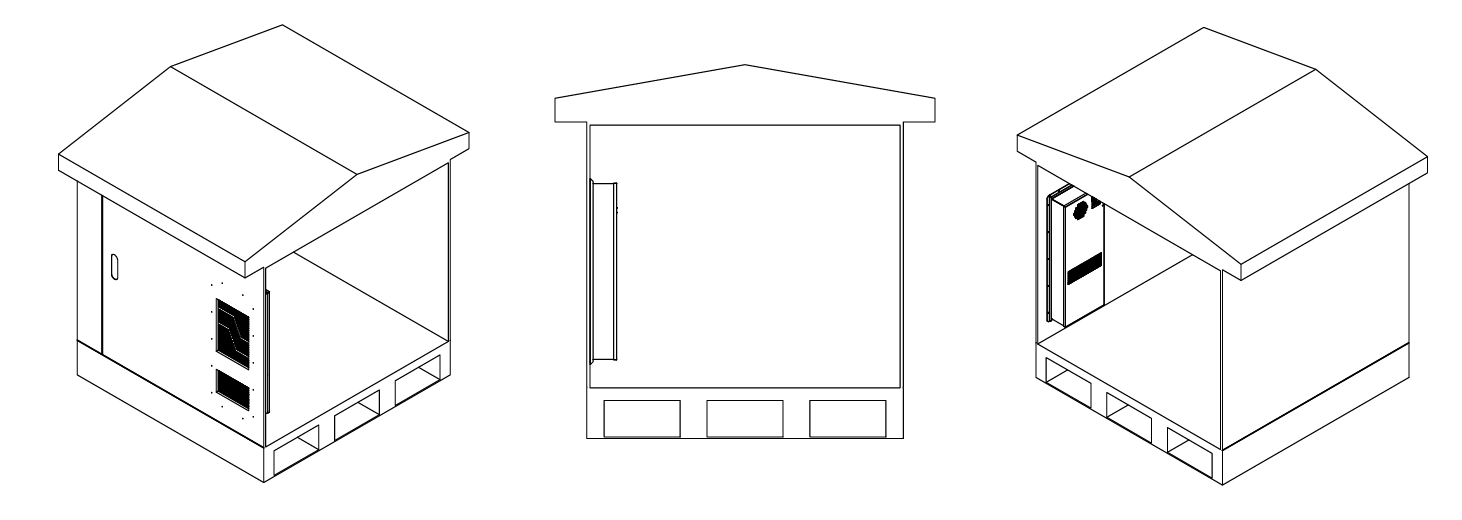

Fully Recessed (Fully Embedded) Installation
The air conditioner is completely integrated into the cabinet wall, providing a clean appearance and optimal space utilization inside the enclosure.

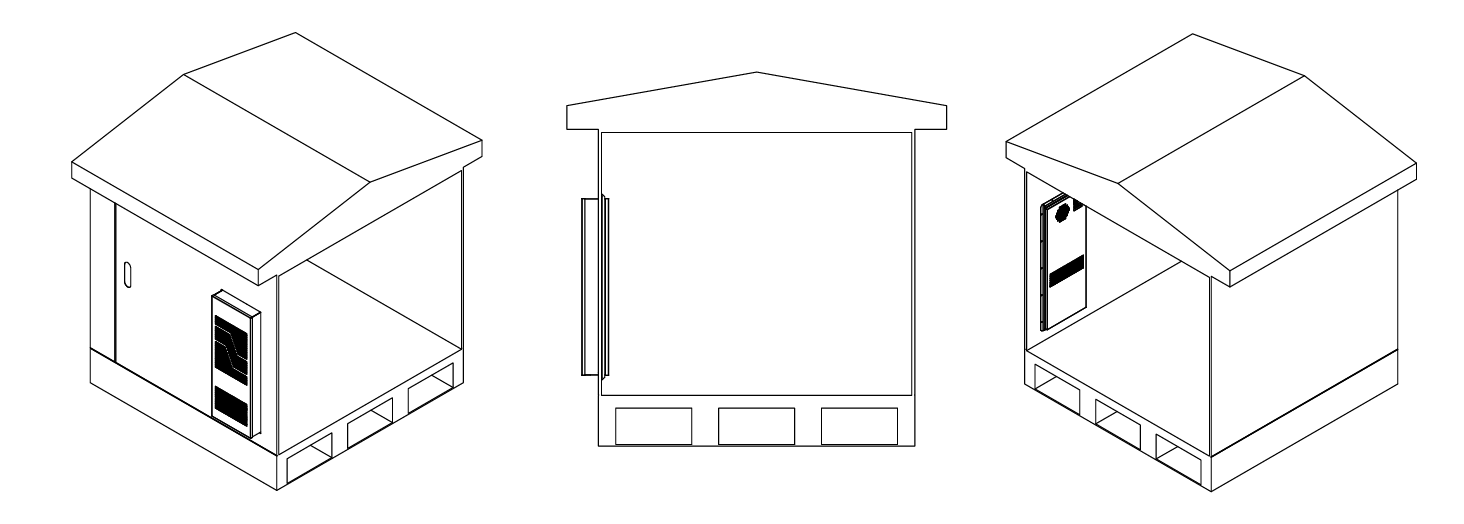

Semi-Recessed (Partially Embedded) Installation
Part of the unit is embedded into the cabinet while the remaining section is mounted externally, offering a balanced solution between cooling performance and installation flexibility.

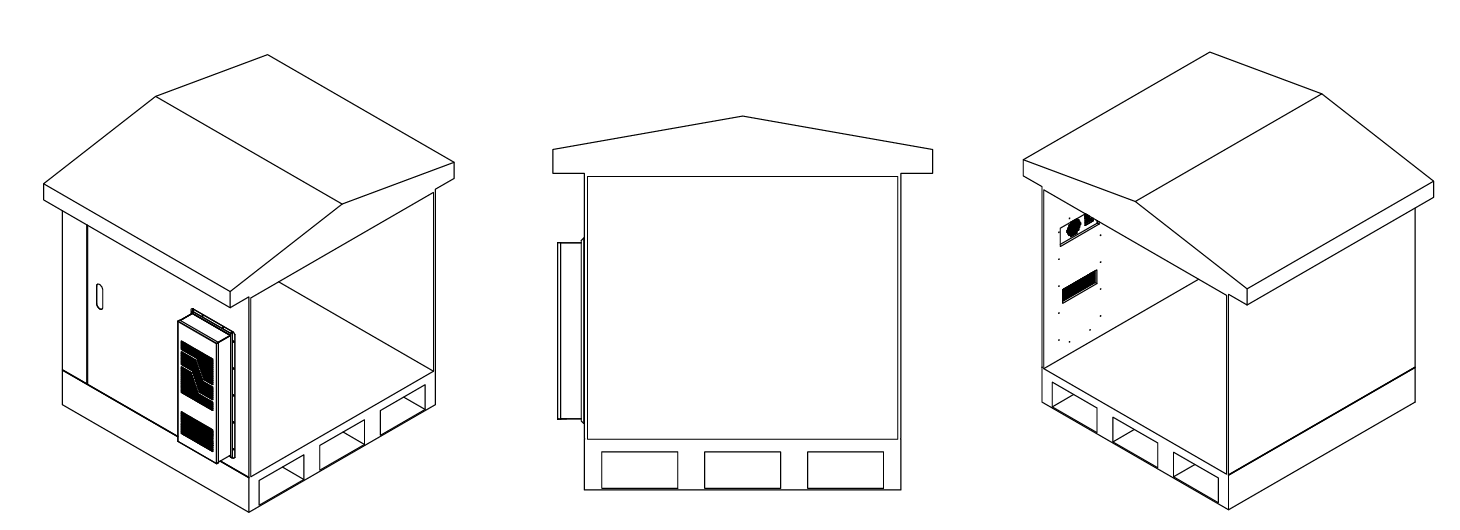

External (Surface-Mounted) Installation
The unit is fully mounted outside the cabinet, ideal for retrofitting existing outdoor enclosures or applications with limited internal space.
Fully Embedded
Semi-embedded
Surface-Mounted
The unit supports 1~220VAC, 50/60Hz single-phase power, making it compatible with standard Australian electrical systems and outdoor utility installations.
To match different heat loads, the enclosure air conditioner series covers:

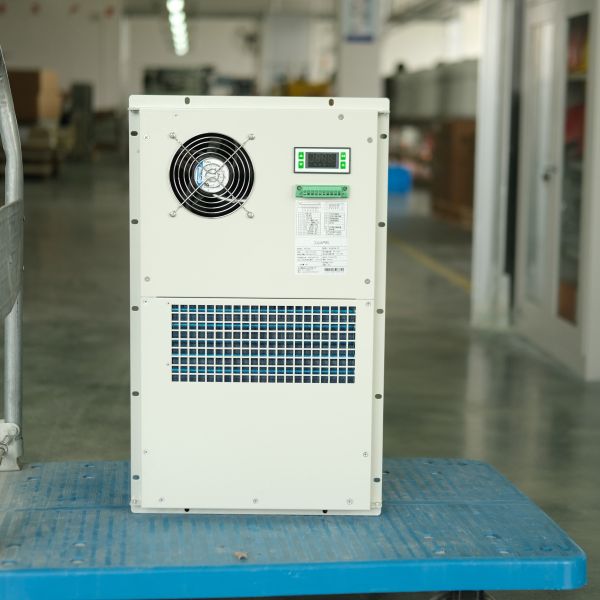

500W enclosure air conditioner – small control cabinets

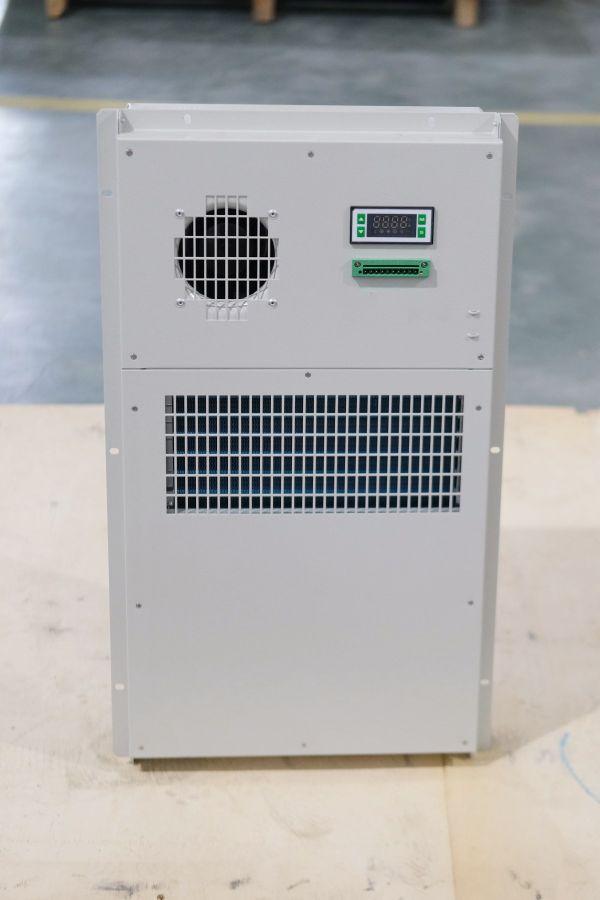

1000W enclosure air conditioner – medium electrical panels

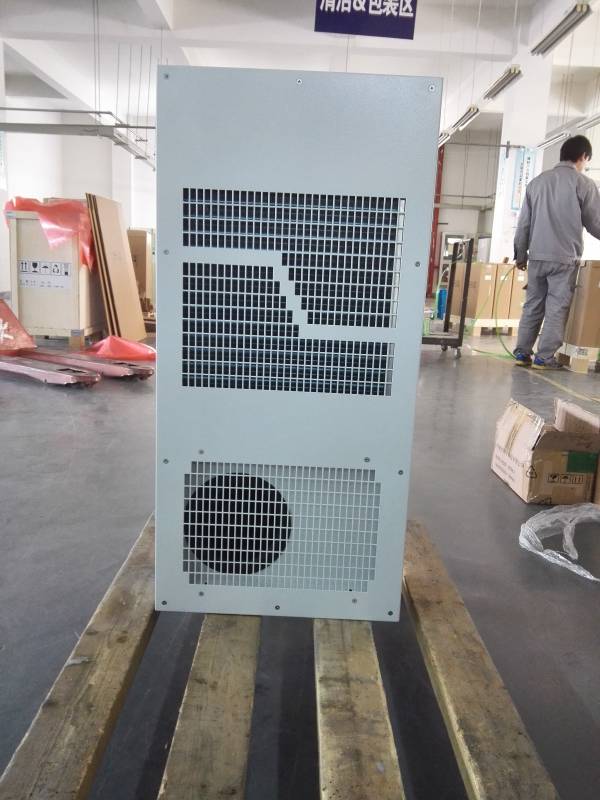

1500W enclosure air conditioner – outdoor control cabinets
2000W enclosure air conditioner – inverter & automation cabinets

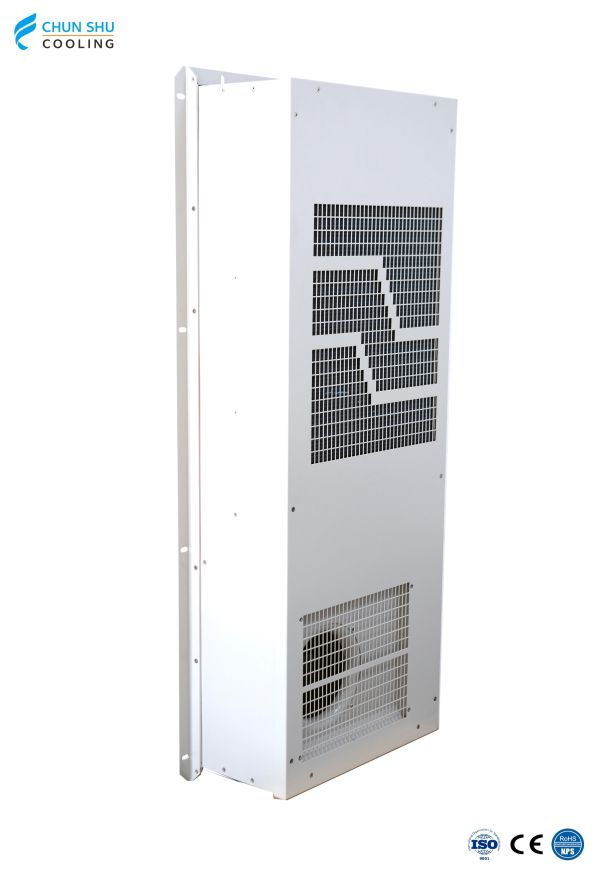

2500W enclosure air conditioner – high-power outdoor enclosures
Each model is designed for high-ambient operation, suitable for Australian summer conditions.
500W
1000W
1500W
2500W
Outdoor electrical cabinet cooling
Industrial control panel air conditioning
Telecom cabinet cooling Australia
Solar & renewable energy enclosures
Mining and utility equipment cabinets
If you operate outdoor electrical equipment in Australia, choosing a standard indoor cooling device simply isn’t enough. You need a high-protection, high-temperature, remotely monitored cooling system engineered specifically for the country’s demanding environment.
Our IP55 Outdoor Cabinet Air Conditioner provides exactly that—
Reliable cooling, smart control, and long-term durability in 55°C harsh outdoor climates.
