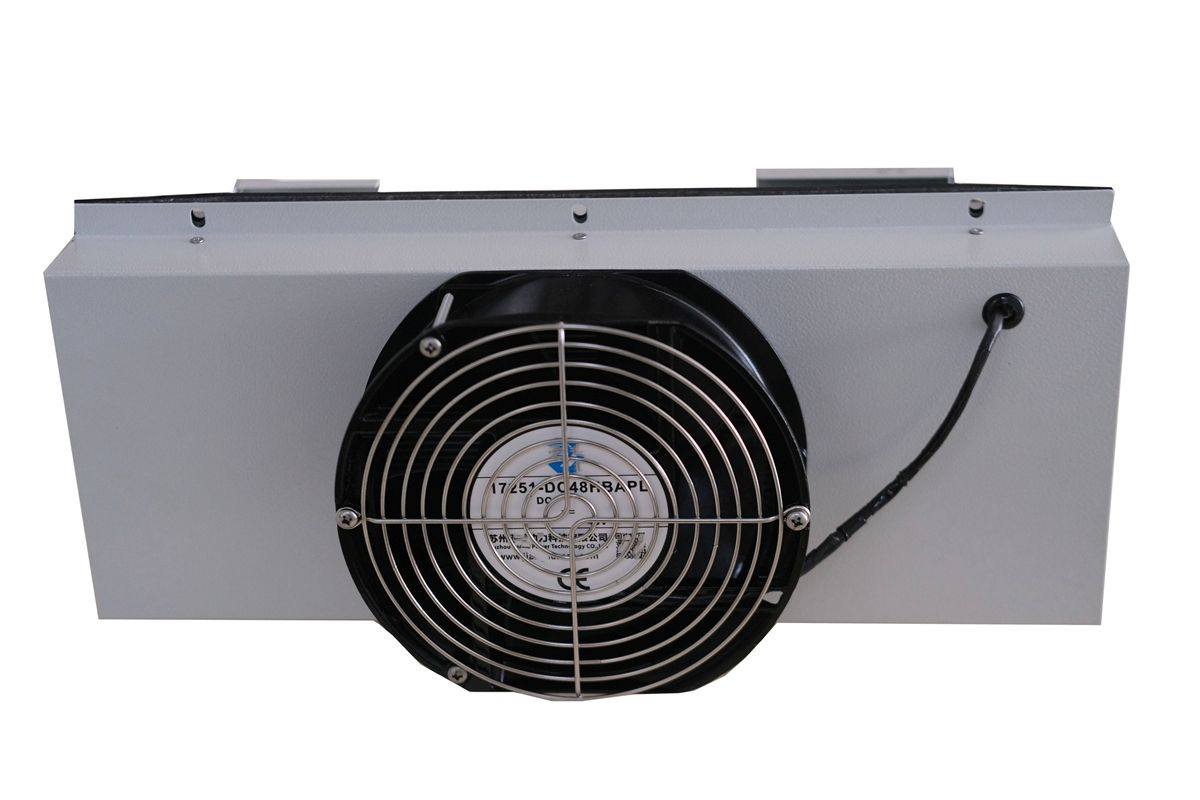

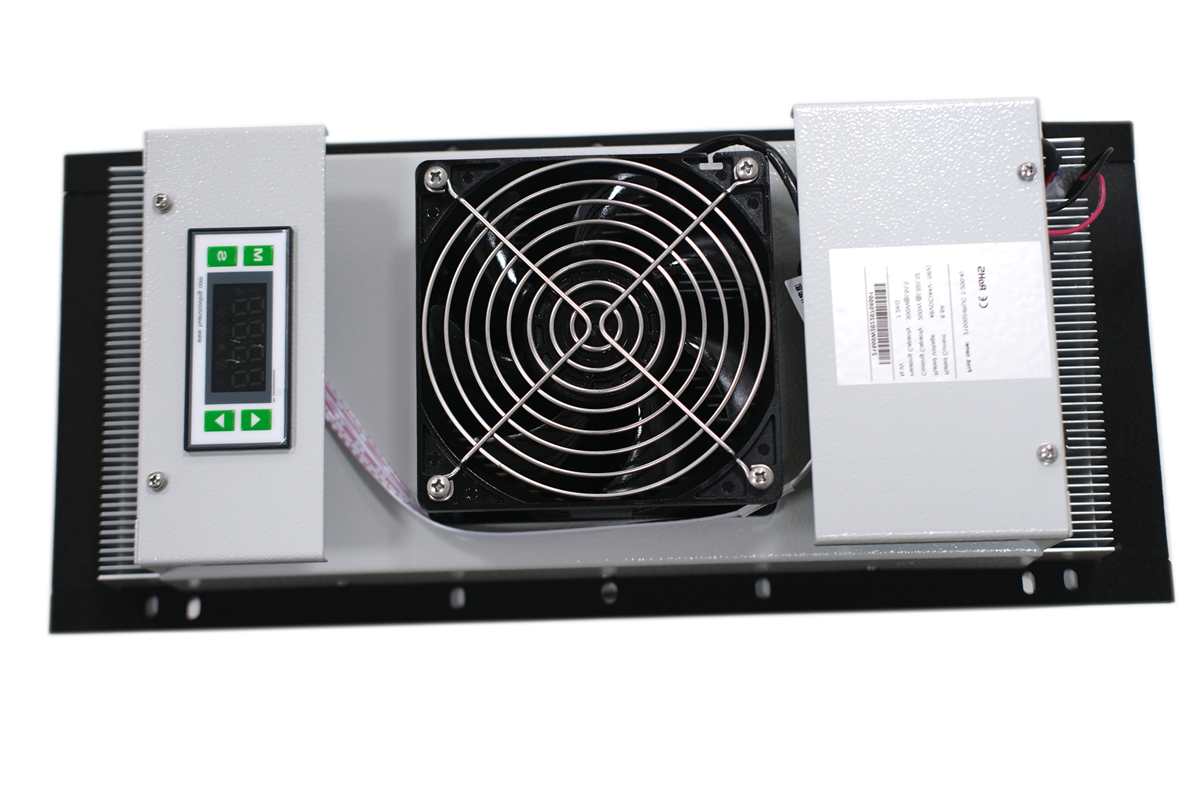

48VDC Thermoelectric Cabinet Air Conditioner (TEC)

Door-mounted semi-embedded design for sealed equipment enclosures, powered by -48VDC and rated IP55. Built with a durable SGCC steel housing and finished in RAL7035 light grey for industrial cabinet use. Available in 200W/250W/300W options with stable temperature control, low maintenance operation.
Availability:
Quantity:
  • CS T 200-4

  • Chunshu

  • 92000

Product Description

48VDC Thermoelectric Cabinet Air Conditioner (TEC)

Door-Mounted Semi-Embedded | 200W / 250W / 300W | IP55

Overview

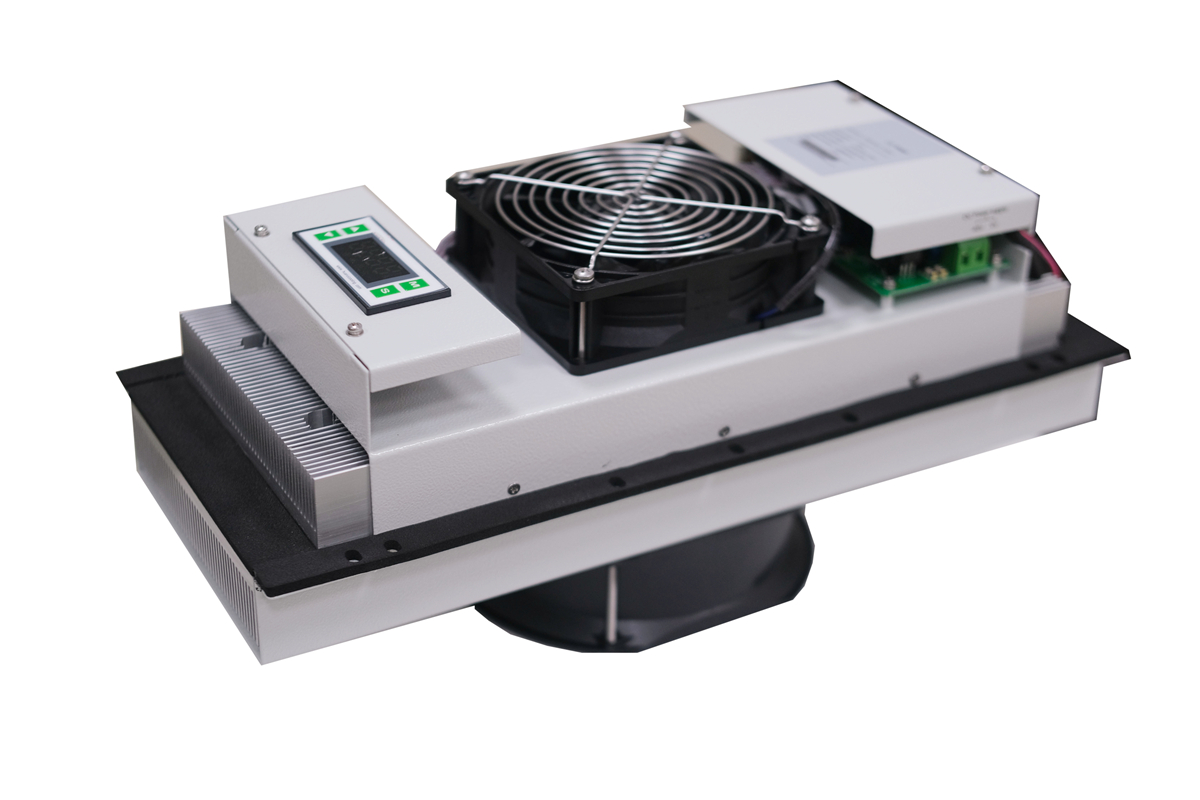

Thermoelectric TEC Peltier Cooler (4)



The Thermoelectric Cabinet Air Conditioner (TEC) is a solid-state, refrigerant-free cooling solution for sealed enclosures. It uses the Peltier effect to move heat from the cabinet interior to the outside environment—no compressor, no refrigerant circuit, and low maintenance.


Designed for communication and industrial equipment cabinets, it helps keep enclosure temperature typically within a controlled range to protect heat-sensitive components and maintain stable operation.



Key Benefits

  • Refrigerant-Free & Eco-Friendly
    Operates without refrigerant, compressor, or pressusure cooling.

  • Solid-State Reliability
    Minimal mechanical wear parts; stable performance for 24/7 cabinet temperature control.

  • Sealed Enclosure Cooling (Closed Air Paths)
    Internal and external air circuits are separated, helping protect cabinet electronics from dust and moisture ingress.

    IP55 Protection

  • IP55 interface protection designed to avoid moisture/dust/water penetration into the enclosure.

    Smart Control & Monitoring

  • Multiple protection functions, visual HMI, and RS485 (MODBUS) communication.

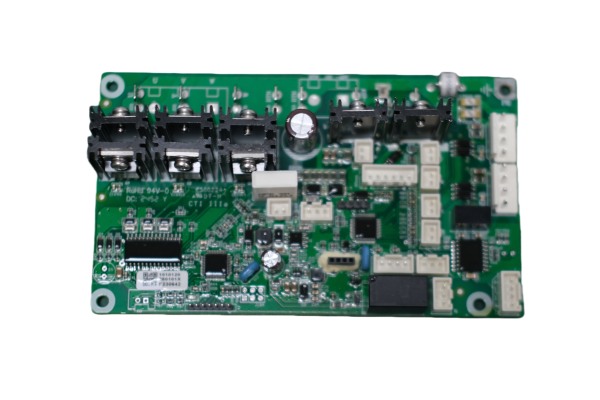

DC PDI intelligent board

DC PDI intelligent board

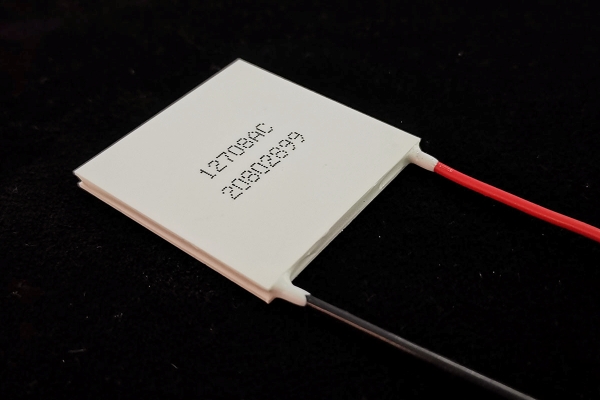

Fujitaka refrigeration panels

High-efficiency Fujitaka refrigeration panels

DC AVC Fan

DC AVC axial fan

Working Principle (How It Works)

A thermoelectric air conditioner consists of six main parts: thermoelectric (Peltier) modules, sealing and insulation materials, a cold-side heat sink, a hot-side heat sink, a cold-side fan, a hot-side fan, and a monitoring/control module. When power is supplied, one side of the thermoelectric module produces cooling while the opposite side produces heat. The generated cooling and heating energy is transferred through the cold-side and hot-side heat sinks and dispersed by the corresponding fans. The cold-side heat sink and fan form the internal air loop, which recirculates cabinet air to provide cooling inside the enclosure. The hot-side heat sink and fan form the external air loop, which rejects heat to the ambient environment outside the cabinet.

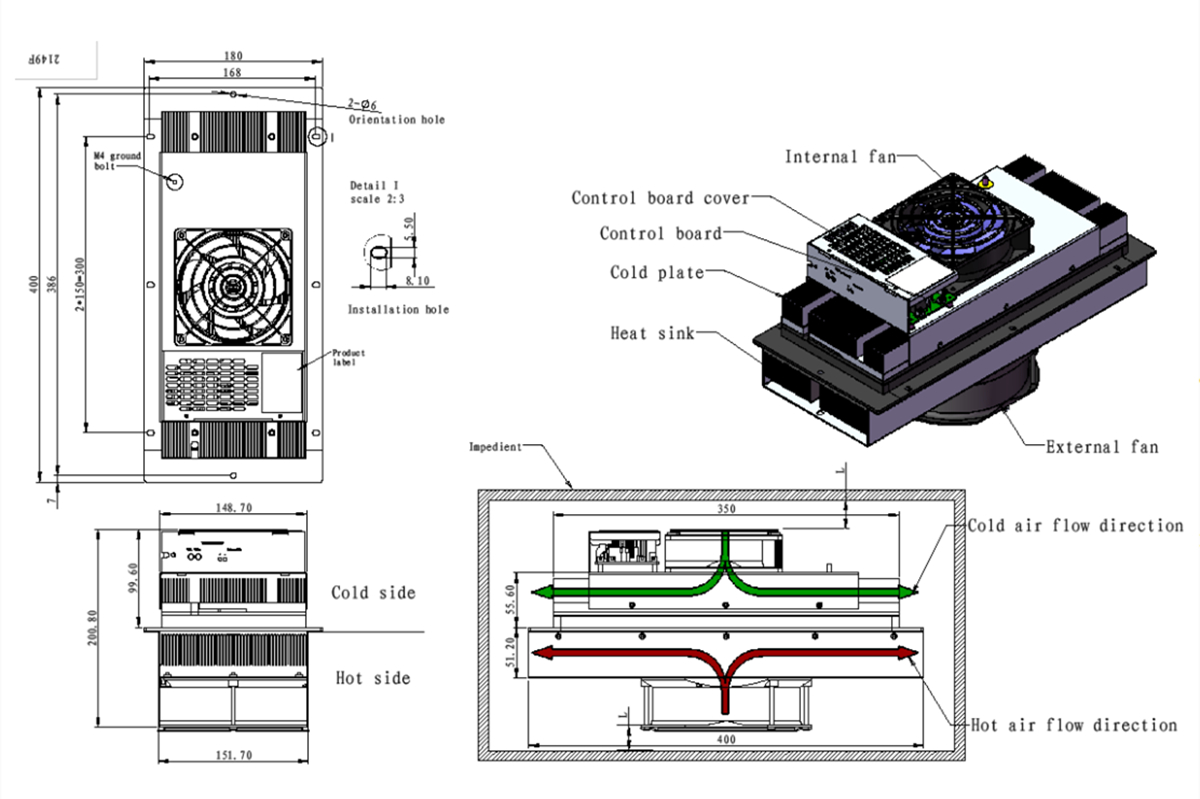

Thermoelectric air conditioner- working principle -diagram

Mounting & Power Supply

  • Power supply: -48VDC±20%

  •  door-mounted, semi-embedded (cut-out flush/half-embedded style)

Technical Specifications


Name

Thermoelectric   (Peltier) air cooler

Model

CS T 200-4

Mounting Method

Semi-embedded   Mounting

Power Supply

-48±20%VDC

Cooling Capacity (L32℃/L32℃)

200W

Power Consumption(L32℃/L32℃)

350W

Heating Capacity(L35℃/L55℃)

300W

Internal Airflow

240 m³/h

Working Temperature Range

-10℃~+55℃

Max Noise Level

67dB(A)

IP Grade

IP55

Net Weight

7.0Kg

Dimensions

400x240x150 (mm, HxWxD)

CE&RoHS Compliant

YES

Surface Treatment



Outdoor type   powder coating, standard color: RAL7035
